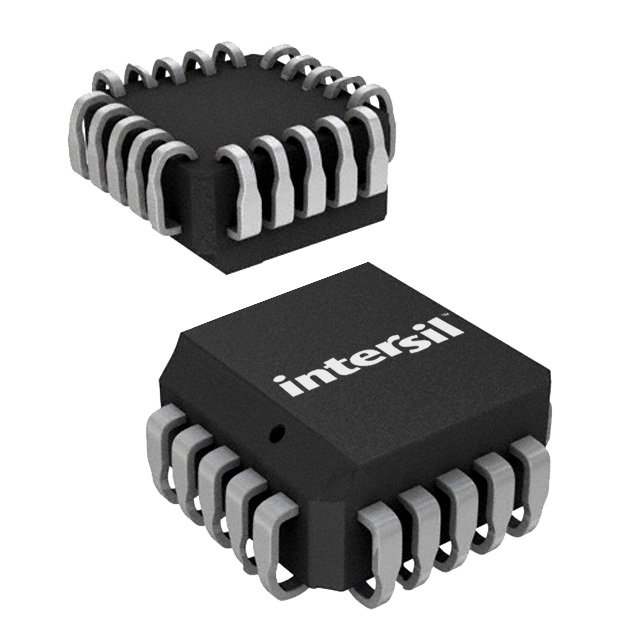

Renesas CS82C84A

Manufacturer No:

CS82C84A

Manufacturer:

Renesas

Package:

PLCC

Description:

5V 25MHz Clock Generators 20 Pins PLCC 20 Terminals Bulk

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CS82C84A information

Renesas CS82C84A technical specifications, attributes, parameters and parts with similar specifications to Renesas CS82C84A.

Type
Parameter

Contact Plating
Lead, Tin

Mount
Surface Mount

Package / Case
PLCC

Number of Pins
20

Packaging
Bulk

Published
1996

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Clock Generators

Technology
CMOS

Terminal Position
QUAD

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
225

Supply Voltage
5V

Pin Count
20

Supply Voltage-Max (Vsup)
5.5V

Power Supplies
5V

Supply Voltage-Min (Vsup)
4.5V

Number of Circuits
1

uPs/uCs/Peripheral ICs Type
CLOCK GENERATOR, PROCESSOR SPECIFIC

Supply Current-Max
40mA

Frequency (Max)
25MHz

Input
TTL

Primary Clock/Crystal Frequency-Nom
25MHz

Output Clock Frequency-Max
8MHz

Length
8.965mm

Height Seated (Max)
4.57mm

Width
8.965mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas CS82C84A.

Datasheets:

intersil-cs82c84a-datasheets-6093.pdf

CS82C84A Overview

Bulk-method packaging is used for clock ICs. The PLCC package contains this clock generator. This clock generator ic can sustain a maximum temperature of 225 during reflowing. It contains 20 terminations that can be found in frequency synthesizer. This electronic frequency generator requires a voltage of 5V. The input of this clock generator is designed to be TTL. To access the full performance of the electronic component, 1 circuits are implemented. There is a maximum frequency of 25MHz Max with this clock-based frequency generator. This clock generator would require a maximum supply voltage of 5.5V. This time clock generator integrates CLOCK GENERATOR, PROCESSOR SPECIFIC uPs, uCs, and peripheral ICs. For safety reasons, this frequency synthesizer should have a voltage supply above 4.5V. The clock generator ic can synthesi8MHze a high-quality clock output frequency of 8MHz. The clock-generating IC is a 20-bit device designed specifically for microprocessors. It is possible to connect to the frequency generators via 20 pins. Despite its low-temperature operation, this clock generator ic is capable of 0°C operations. Despite its attenuated performance, this frequency synthesizer can last at 70°C. This clock generator can be classified as a kind of Clock Generators in general. It is possible for an element to be thermally destroyed if clock PLL?s supply current (greater than 40mA) is excessive.
