ST L7986TA
Manufacturer No:
L7986TA
Manufacturer:
Package:

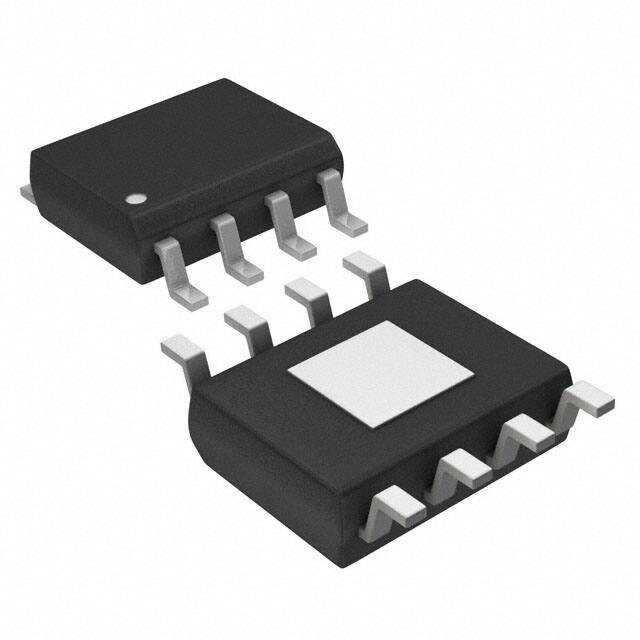

8-SOIC (0.154, 3.90mm Width) Exposed Pad
Description:
8 Terminals 4.5V 8-Pin L7986 DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 250kHz~1MHz Tube 8-SOIC (0.154, 3.90mm Width) Exposed Pad
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
L7986TA information
ST L7986TA technical specifications, attributes, parameters and parts with similar specifications to ST L7986TA.
- Type
- Parameter
- Lifecycle Status
- ACTIVE (Last Updated: 7 months ago)
- Factory Lead Time
- 11 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 8-SOIC (0.154, 3.90mm Width) Exposed Pad
- Number of Pins
- 8
- Operating Temperature
- -40°C~150°C TJ
- Packaging
- Tube
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 8
- ECCN Code
- EAR99
- Terminal Finish
- Matte Tin (Sn) - annealed
- Subcategory
- Switching Regulator or Controllers
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Base Part Number
- L7986
- Function
- Step-Down
- Number of Outputs
- 1
- Output Voltage
- 38V
- Output Type
- Adjustable
- Max Output Current
- 3A
- Voltage - Input (Min)
- 4.5V
- Analog IC - Other Type
- SWITCHING REGULATOR
- Output Configuration
- Positive
- Max Output Voltage
- 38V
- Voltage - Output (Min/Fixed)
- 0.6V
- Topology
- Buck
- Control Mode
- VOLTAGE-MODE
- Frequency - Switching
- 250kHz~1MHz
- Control Technique
- PULSE WIDTH MODULATION
- Synchronous Rectifier
- No
- Min Output Voltage
- 600mV
- Length
- 4.9mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for ST L7986TA.
L7986TA Overview
For optimal performance, this voltage regulator makes use of the Tube package. In this voltage regulator, there are a total of 8 terminations. There is one type of analog IC that this voltage regulator is equipped with, and that is the SWITCHING REGULATOR type. In order to save space, this harley voltage regulator is available in the 8-SOIC (0.154, 3.90mm Width) Exposed Pad package. There are 1 outputs configured on this voltage regulator 12v. There are output pins on this DC DC switching regulator that generate Adjustable output. Surface Mount-mounting is compatible with this switching regulator. The operating temperature should be kept at -40°C~150°C TJ when the voltage regulator 12v is in operation. This DC-DC switching regulator has a switching frequency of 250kHz~1MHz. The voltage regulator can operate with a dc to dc voltage regulator's minimum input voltage of 4.5V. As a result, the output voltage of the voltage regulator 12v (Min/Fixed) is 0.6V. In order to meet the operation requirements,voltage regulator is designed to provide a nominal input voltage of 12V. There is a subcategory called Switching Regulator or Controllers that includes this voltage regulator. The L7986 family of DC/DC regulators includes this DC/DC regulator. The voltage DC DC switching regulator can produce is 38V volts. There are 8 pins that are used for the operation of the voltage regulator 12v. There should be at least a 600mV volt output voltage for this switching regulator in order to make it work properly. The maximum output current reaches 3A A to meet the switching regulator operation requirements. The maximum output voltage of this regulator voltage is 38V.
