ST STPS30L40CW
Manufacturer No:
STPS30L40CW
Manufacturer:
Package:

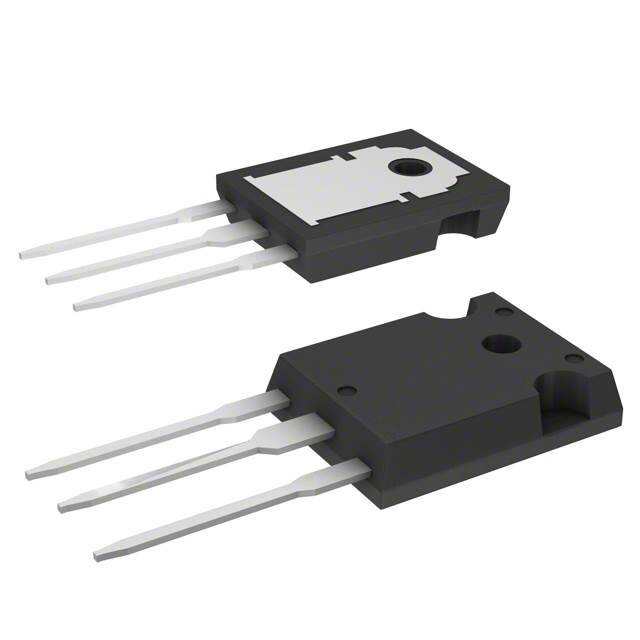

TO-247-3
Description:
Schottky Rectifier Diode 1 Pair Common Cathode Fast Recovery =< 500ns, > 200mA (Io) 150°C Max 15A 40V-DC 2-Element TO-247-3 Through Hole
Quantity:
Delivery:




Payment:






In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
STPS30L40CW information
ST STPS30L40CW technical specifications, attributes, parameters and parts with similar specifications to ST STPS30L40CW.
Type | Parameter |
---|---|
Mount | Radial, Through Hole |
Mounting Type | Through Hole |
Package / Case | TO-247-3 |
Number of Pins | 3 |
Diode Element Material | SILICON |
Packaging | Tube |
JESD-609 Code | e3 |
Part Status | Obsolete |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Number of Terminations | 3 |
ECCN Code | EAR99 |
Terminal Finish | Tin (Sn) |
Max Operating Temperature | 150°C |
Min Operating Temperature | -65°C |
Additional Feature | FREE WHEELING DIODE |
HTS Code | 8541.10.00.80 |
Subcategory | Rectifier Diodes |
Voltage - Rated DC | 40V |
Terminal Position | SINGLE |
Current Rating | 30A |
Base Part Number | STPS30L40 |
Pin Count | 3 |
Number of Elements | 2 |
Element Configuration | Common Cathode |
Type | Parameter |
---|---|
Diode Type | Schottky |
Current - Reverse Leakage @ Vr | 360?A @ 40V |
Voltage - Forward (Vf) (Max) @ If | 550mV @ 15A |
Forward Current | 15A |
Max Reverse Leakage Current | 360?A |
Operating Temperature - Junction | 150°C Max |
Max Surge Current | 220A |
Application | POWER |
Forward Voltage | 500mV |
Max Reverse Voltage (DC) | 40V |
Average Rectified Current | 15A |
Number of Phases | 1 |
Peak Reverse Current | 360?A |
Max Repetitive Reverse Voltage (Vrrm) | 40V |
JEDEC-95 Code | TO-247AC |
Peak Non-Repetitive Surge Current | 220A |
Diode Configuration | 1 Pair Common Cathode |
Max Forward Surge Current (Ifsm) | 220A |
REACH SVHC | No SVHC |
Radiation Hardening | No |
RoHS Status | ROHS3 Compliant |
Lead Free | Lead Free |
