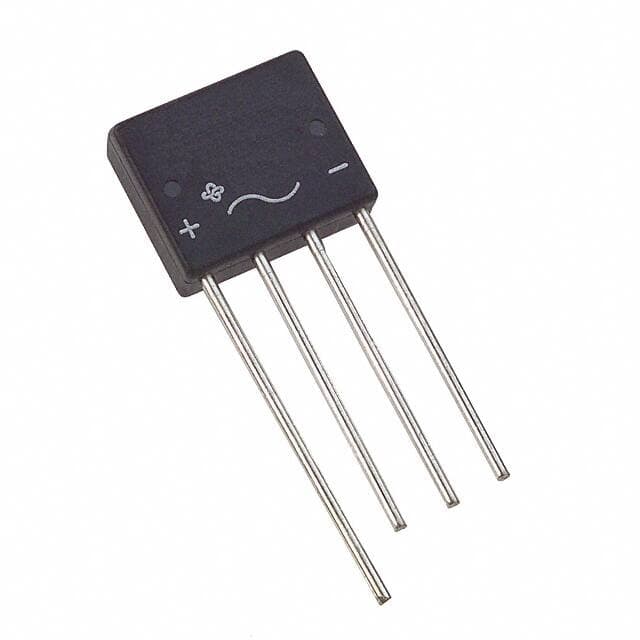

VISHAY KBL08-E4/51
Manufacturer No:
KBL08-E4/51
Manufacturer:
Package:
4-SIP, KBL
Description:
Single Phase Bridge Rectifier Standard Through Hole -50°C~150°C TJ 5?A @ 800V 1.1V @ 4A 4-Termination 1-Phase 4-SIP, KBL Bulk
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
KBL08-E4/51 information
VISHAY KBL08-E4/51 technical specifications, attributes, parameters and parts with similar specifications to VISHAY KBL08-E4/51.
- Type
- Parameter
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- 4-SIP, KBL
- Number of Pins
- 4
- Diode Element Material
- SILICON
- Operating Temperature
- -50°C~150°C TJ
- Packaging
- Bulk
- Published
- 2016
- JESD-609 Code
- e4
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- Not Applicable
- Number of Terminations
- 4
- Terminal Finish
- Silver (Ag)
- Additional Feature
- UL RECOGNIZED
- Subcategory
- Bridge Rectifier Diodes
- Technology
- Standard
- Terminal Form
- WIRE
- Base Part Number
- KBL08
- Pin Count
- 4
- Number of Elements
- 1
- Element Configuration
- Single
- Diode Type
- Single Phase
- Current - Reverse Leakage @ Vr
- 5?A @ 800V
- Voltage - Forward (Vf) (Max) @ If
- 1.1V @ 4A
- Case Connection
- ISOLATED
- Forward Current
- 4A
- Max Reverse Leakage Current
- 5?A
- Max Surge Current
- 200A
- Breakdown Voltage
- 800V
- Forward Voltage
- 1.1V
- Average Rectified Current
- 4A
- Number of Phases
- 1
- Peak Reverse Current
- 5?A
- Max Repetitive Reverse Voltage (Vrrm)
- 800V
- Peak Non-Repetitive Surge Current
- 200A
- Reverse Voltage
- 800V
- Max Forward Surge Current (Ifsm)
- 200A
- Max Junction Temperature (Tj)
- 150°C
- Height
- 16.3mm
- Length
- 19.5mm
- Width
- 6.5mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for VISHAY KBL08-E4/51.
Other Related Documents:
PCN Design/Specification:
RohsStatement:
KBL08-E4/51 Overview
There are no pins on rectifier.A forward voltage of 4A is required to operate this device.The reverse voltage can be 800V.The base part number KBL08 can be used to identify a number of related parts.A 4-SIP, KBL package is a type of electronic component.Reverse leakage current should be monitored and not allowed to exceed 5?A.Through Hole is the mounting method for the device.Its normal operation is ensured by operating at a temperature of -50°C~150°C TJ.Bridge rectifier is important to monBridge rectifieror surge current and not allow Bridge rectifier to exceed 200A.This device is powered by a peak reverse voltage of 5?A.Its output current of 4A allows maximum design flexibility.
KBL08-E4/51 Features
4 pin count
4A forward voltage
forward voltage of 4A
4-SIP, KBL package
operating at a temperature of -50°C~150°C TJ
peak reverse voltage of 5?A
a reverse voltage peak of 5?A
4A output current
KBL08-E4/51 Applications
There are a lot of Vishay Semiconductor Diodes Division
KBL08-E4/51 applications of bridge rectifiers.
- Working peak reverse voltages 200 to 1 ,000 volts
- Military and other high-reliability applications
- High forward surge current capability
- Low thermal resistance
- Extremely robust construction
- Fuse-in-glass diodes design
- Electrically isolated aluminum case
- Motor controls ? Low Voltage and Medium Voltage converters
- SCR power bridges for solid state starters
- SCR and diode based input rectifiers
