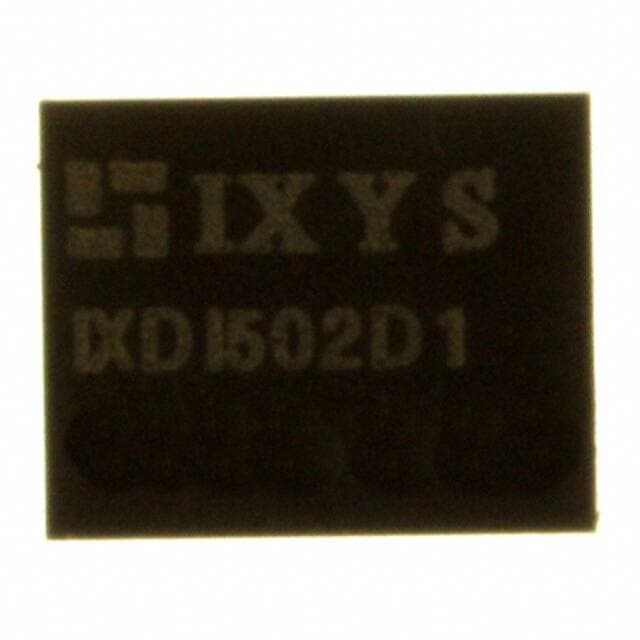

LITTELFUSE IXDI502D1T/R

Manufacturer No:

IXDI502D1T/R

Manufacturer:

LITTELFUSE

Package:

6-VDFN Exposed Pad

Description:

Surface Mount Tape & Reel (TR) Obsolete EAR99 Gate Drivers ICs Inverting 2 6-VDFN Exposed Pad IXD*502 Low-Side

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IXDI502D1T/R information

LITTELFUSE IXDI502D1T/R technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE IXDI502D1T/R.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
6-VDFN Exposed Pad

Surface Mount
YES

Operating Temperature
-55°C~150°C TJ

Packaging
Tape & Reel (TR)

Published
2010

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

ECCN Code
EAR99

Subcategory
MOSFET Drivers

Technology
CMOS

Voltage - Supply
4.5V~30V

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
2

Supply Voltage
15V

Terminal Pitch
1mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
IXD*502

Pin Count
6

JESD-30 Code
R-PDSO-N6

Qualification Status
Not Qualified

Power Supplies
4.5/30V

Nominal Supply Current
3mA

Input Type
Inverting

Rise Time
10ns

Fall Time (Typ)
9 ns

Rise / Fall Time (Typ)
7.5ns 6.5ns

Interface IC Type
BUFFER OR INVERTER BASED MOSFET DRIVER

Channel Type
Independent

Number of Drivers
2

Turn On Time
0.04 ?s

Output Peak Current Limit-Nom
2A

Driven Configuration
Low-Side

Gate Type
IGBT, N-Channel, P-Channel MOSFET

Current - Peak Output (Source, Sink)
2A 2A

High Side Driver
NO

Logic Voltage - VIL, VIH
0.8V 3V

Turn Off Time
0.038 ?s

Length
5mm

Height Seated (Max)
0.9mm

Width
3.99mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for LITTELFUSE IXDI502D1T/R.

Datasheets:

ixys-ixdi502d1tr-datasheets-5861.pdf

IXDI502D1T/R Overview

Its 6-VDFN Exposed Pad package provides greater flexibility.A packaging method of Tape & Reel (TR) is indicated.The configuration is supported by 2 drivers.It's mounted on the way to Surface Mount.In the absence of a 4.5V~30V supply voltage, it can demonstrate its superiority.A gate type of IGBT, N-Channel, P-Channel MOSFET is used in its design.There is a temperature range for this device of -55°C~150°C TJ.Inverting is used as the input type in this program.Its configuration starts with 6 terminations.You will find various related parts under the base part number IXD*502.A voltage of 15V is required for its operation.Mosfet driver employs an interface chip called BUFFER OR INVERTER BASED MOSFET DRIVER as Mosfet drivers interface chip.In this subcategory of MOSFET Drivers, there are numerous useful electronic components.On the board, there are 6 component pins.Based on its power supplies of 4.5/30V, it solves the problem of power supply failure for a variety of applications.Mosfet gate drivers is recommended that the operating voltage of the supply be set at 15V.

IXDI502D1T/R Features

Embedded in the Tape & Reel (TR) package
2 drivers
Employing a gate type of IGBT, N-Channel, P-Channel MOSFET

IXDI502D1T/R Applications

There are a lot of IXYS
IXDI502D1T/R gate drivers applications.

Active filtering
Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
Multicolor LED/laser displays
Smart Phones
Portable Navigation Devices
Portable Media Players
Motor Controls
DC-DC Converters
