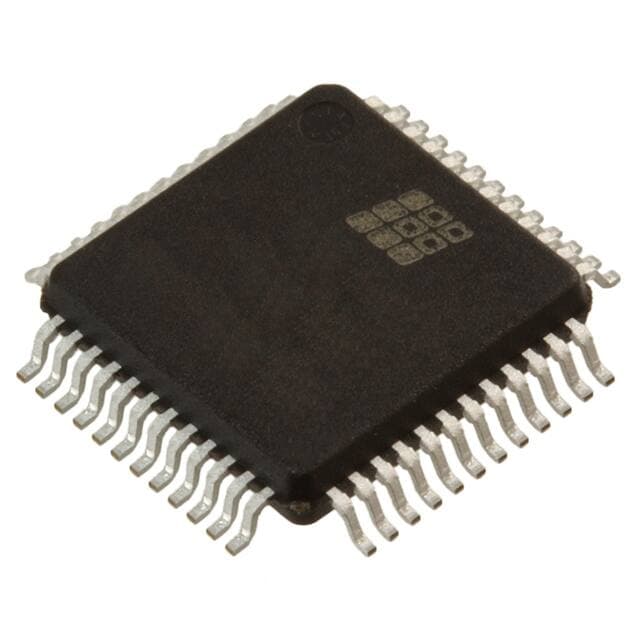

LATTICE ISPPAC-POWR1014-01T48I

Manufacturer No:

ISPPAC-POWR1014-01T48I

Manufacturer:

LATTICE

Package:

48-LQFP

Description:

Description: Power Supply Support Circuit, Adjustable, 10 Channel, CMOS, PQFP48, TQFP-48

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISPPAC-POWR1014-01T48I information

LATTICE ISPPAC-POWR1014-01T48I technical specifications, attributes, parameters and parts with similar specifications to LATTICE ISPPAC-POWR1014-01T48I.

Type
Parameter

Pbfree Code
No

RoHS Status
Non-RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
LATTICE SEMICONDUCTOR CORP

Part Package Code
QFP

Pin Count
48

Reach Compliance Code
unknown

ECCN Code
EAR99

HTS Code
8542.39.00.01

Adjustable Threshold
YES

Analog IC - Other Type
POWER SUPPLY SUPPORT CIRCUIT

JESD-30 Code
S-PQFP-G48

JESD-609 Code
e0

Length
7 mm

Moisture Sensitivity Level
3

Number of Channels
10

Number of Functions
1

Number of Terminals
48

Operating Temperature-Max
85 °C

Operating Temperature-Min
-40 °C

Package Body Material
PLASTIC/EPOXY

Package Code
LFQFP

Package Equivalence Code
QFP48,.35SQ,20

Package Shape
SQUARE

Peak Reflow Temperature (Cel)
240

Qualification Status
Not Qualified

Seated Height-Max
1.6 mm

Supply Voltage-Max (Vsup)
3.96 V

Supply Voltage-Min (Vsup)
2.8 V

Supply Voltage-Nom (Vsup)
3.3 V

Surface Mount
YES

Technology
CMOS

Temperature Grade
INDUSTRIAL

Terminal Finish
TIN LEAD

Terminal Form
GULL WING

Terminal Pitch
0.5 mm

Terminal Position
QUAD

Time@Peak Reflow Temperature-Max (s)
30

Width
7 mm

Download datasheets and manufacturer documentation for LATTICE ISPPAC-POWR1014-01T48I.

Datasheets:

LATT-S-A0011483391-1.pdf

ISPPAC-POWR1014-01T48I Overview

The package is in the format Tray. The 48-LQFP package is available to save space. Surface Mount instructs that it should be mounted in the following manner. The temperature should always be kept at -40°C~85°C when the system is operating. Its exceptional performance makes it an excellent choice for Power Supply Monitor, Sequencer. High efficiency can be achieved thanks to the 2.8V~3.96V supply voltage. As part of this device, an analog IC POWER SUPPLY SUPPORT CIRCUIT is used. In total, there has been 48 terminations of this process. There is a peak in the reflow temperature of 240. In total, it consists of 48 pins. It has a base part number of ISPPAC-POWR1014, which can be used to locate similar components. Having the supply voltage at 3.3V makes it possible to achieve high efficiency. Access to 10 channels is possible. In Power Management Circuits, this device is included. It is standard for the supply voltage (Vsup) to be higher than 2.8V for normal operation. With the 48 pins, it is designed in a very simple way. 3.96V is the maximum supply voltage. A supply current of 20mA powers the device. Based on the Surface Mount method, it is mounted. This device relies on 2.5/53/3.3V power supplies for its energy. This circuit requires an input voltage of -0.3V~5.9V. ispPAC® is the series of this electrical component.

ISPPAC-POWR1014-01T48I Features

48-LQFP package
Mounting type of Surface Mount
Power Management Circuits subcategory

ISPPAC-POWR1014-01T48I Applications

There are a lot of Lattice Semiconductor Corporation
ISPPAC-POWR1014-01T48I Power Supply Control ICs applications.

Smart home
User-available push-button control panel
Computer monitor
Touch screen
Remote control
Projector
Visualizer
DVD player
VCR
Deck
