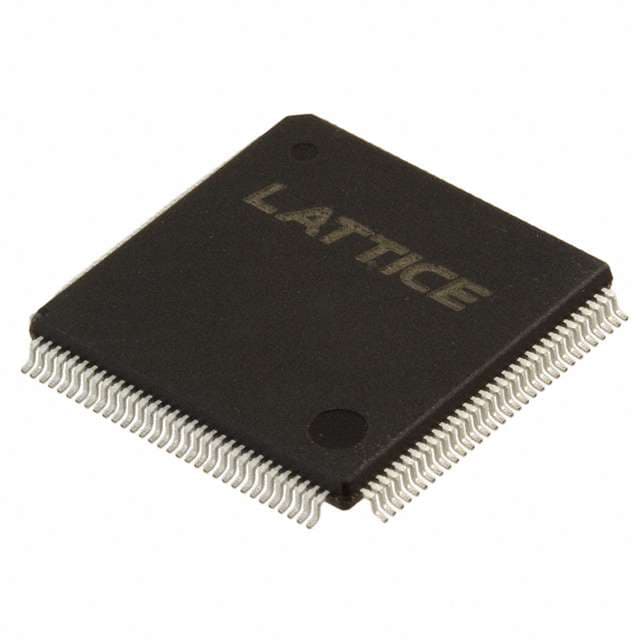

LATTICE ISPLSI 2096VE-135LTN128

Manufacturer No:

ISPLSI 2096VE-135LTN128

Manufacturer:

LATTICE

Package:

128-LQFP

Description:

3.3V 0.4mm PMIC ispLSI® 2000VE Series ISPLSI 2096 3.3V 128-LQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISPLSI 2096VE-135LTN128 information

LATTICE ISPLSI 2096VE-135LTN128 technical specifications, attributes, parameters and parts with similar specifications to LATTICE ISPLSI 2096VE-135LTN128.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
128-LQFP

Surface Mount
YES

Operating Temperature
0°C~70°C TA

Packaging
Tray

Series
ispLSI® 2000VE

Published
2000

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
128

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Additional Feature
YES

HTS Code
8542.39.00.01

Subcategory
Programmable Logic Devices

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Terminal Pitch
0.4mm

Reach Compliance Code
compliant

Base Part Number
ISPLSI 2096

Pin Count
128

JESD-30 Code
S-PQFP-G128

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.6V

Power Supplies
3.3V

Supply Voltage-Min (Vsup)
3V

Programmable Type
In System Programmable

Number of I/O
96

Clock Frequency
100MHz

Propagation Delay
10 ns

Number of Gates
4000

Output Function
MACROCELL

Number of Macro Cells
96

JTAG BST
NO

Number of Dedicated Inputs
2

Voltage Supply - Internal
3V~3.6V

Delay Time tpd(1) Max
7.5ns

Number of Logic Elements/Blocks
24

Length
14mm

Height Seated (Max)
1.6mm

Width
14mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LATTICE ISPLSI 2096VE-135LTN128.

Datasheets:

latticesemiconductorcorporation-isplsi2096ve135lt128-datasheets-2123.pdf

latticesemiconductorcorporation-lptm1012473tg128i-datasheets-5774.pdf

PCN Packaging:

latticesemiconductorcorporation-mod6320tc-pcnpackaging-2141.pdf

ISPLSI 2096VE-135LTN128 Overview

The mobile phone network has 96 macro cells, which are cells that provide radio coverage from high-power cell sites (towers, antennas, or masts).In the 128-LQFP package, you will find it.In this case, there are 96 I/Os programmed.128 terminations are programmed into the device.This electrical component has a terminal position of QUAD.An electrical supply voltage of 3.3V is used to power it.The part belongs to Programmable Logic Devices family.Tray should be used to package the chip.Due to its reliability, it is operated at a temperature of 0°C~70°C TA.There should be a Surface Mount on the chip.The FPGA belongs to the ispLSI® 2000VE series.A chip with 128 pins is programmed.This device also displays YES.The ISPLSI 2096 shows its related parts.A digital circuit can be constructed using 4000 gates.24logic blocks/elements are present.This device runs on 3.3V volts of electricity.There is a maximum supply voltage (Vsup) of 3.6V.To detect the status of input signals, there are 2 dedicated inputs.If the supply voltage (Vsup) is greater than 3V, then the device will work properly.It is recommended that the clock frequency not exceed 100MHz.

ISPLSI 2096VE-135LTN128 Features

128-LQFP package
96 I/Os
The operating temperature of 0°C~70°C TA
128 pin count
3.3V power supplies

ISPLSI 2096VE-135LTN128 Applications

There are a lot of Lattice Semiconductor Corporation
ISPLSI 2096VE-135LTN128 CPLDs applications.

I/O expansion
Discrete logic functions
Bootloaders for FPGAs
Address decoders
Custom state machines
Digital systems
Portable digital devices
Handheld digital devices
Battery operated portable devices
Complex programmable logic devices
