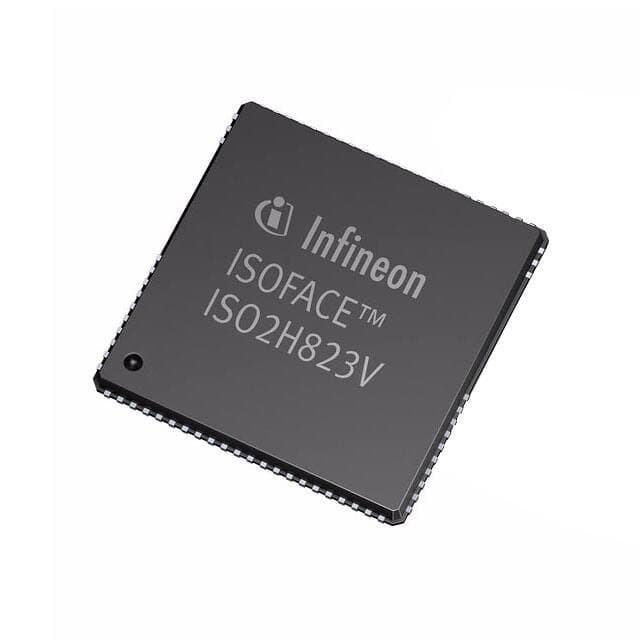

INFINEON ISO2H823V25XUMA1
INFINEON ISO2H823V25XUMA1

INFINEON ISO2H823V25XUMA1

Manufacturer No:

ISO2H823V25XUMA1

Manufacturer:

INFINEON

Package:

70-VFQFN Exposed Pad

Description:

P-Channel PMIC ISOFACE? Series 70 Pin 3.3V 70-VFQFN Exposed Pad

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISO2H823V25XUMA1 information

INFINEON ISO2H823V25XUMA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON ISO2H823V25XUMA1.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 70-VFQFN Exposed Pad
  • Number of Pins
  • 70
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tape & Reel (TR)
  • Series
  • ISOFACE?
  • Published
  • 1996
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 70
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Max Power Dissipation
  • 1.5W
  • Terminal Position
  • QUAD
  • Terminal Form
  • NO LEAD
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 1
  • Supply Voltage
  • 3.3V
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Number of Outputs
  • 8
  • Supply Voltage-Max (Vsup)
  • 3.6V
  • Supply Voltage-Min (Vsup)
  • 2.75V
  • Interface
  • SPI, Parallel
  • Nominal Supply Current
  • 9mA
  • Output Configuration
  • High Side
  • Voltage - Supply (Vcc/Vdd)
  • 2.75V~3.6V
  • Switch Type
  • General Purpose
  • Halogen Free
  • Halogen Free
  • Ratio - Input:Output
  • 1:8
  • Voltage - Load
  • 11V~35V
  • Fault Protection
  • Current Limiting (Fixed), Over Temperature, UVLO
  • Turn On Time
  • 30 ?s
  • Output Peak Current Limit-Nom
  • 1A
  • Rds On (Typ)
  • 210m ?
  • Turn Off Time
  • 30 ?s
  • Built-in Protections
  • OVER CURRENT; OVER VOLTAGE
  • Output Current Flow Direction
  • SOURCE
  • Length
  • 12mm
  • Height Seated (Max)
  • 0.9mm
  • Width
  • 12mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for INFINEON ISO2H823V25XUMA1.

Datasheets:

Other Related Documents:

PCN Packaging:

ConflictMineralStatement:

ISO2H823V25XUMA1 Overview


The LED driver's packaged as a Tape & Reel (TR).The 70-VFQFN Exposed Pad package contains it.Surface Mount is the mounting type of the LED driver.The switch type is General Purpose.To ensure reliable operation, the temperature should be set to -40°C~85°C TA.There is a default setting of 8 for output.To operate, it needs a supply voltage of 2.75V~3.6V.The maximum output voltage is P-Channel volts.It contains 70 terminations.For operation, 70 pins are used.The LED driver has 1 functions.A supply voltage of 3.3V leads to high efficiency.The lighting driver is mounted in the way of Surface Mount.This electrical component is included in the ISOFACE? series.The maximum supply voltage is set to 3.6V.In order for the lighting driver to operate normally, the supply voltage (Vsup) should be maintained above 2.75V.

ISO2H823V25XUMA1 Features


Supplied from 3.3V


ISO2H823V25XUMA1 Applications


There are a lot of Infineon Technologies
ISO2H823V25XUMA1 Power Switches ICs applications.


  • Portable GPS Device
  • Set-top-box
  • USB Power Distribution
  • Notebook PC
  • Telecom and Network Systems
  • PC Card Hot Swap
  • Storage Drives
  • Portable/Handheld Devices
  • Wireless/Networking Cards
  • Low Voltage I/O System Power
