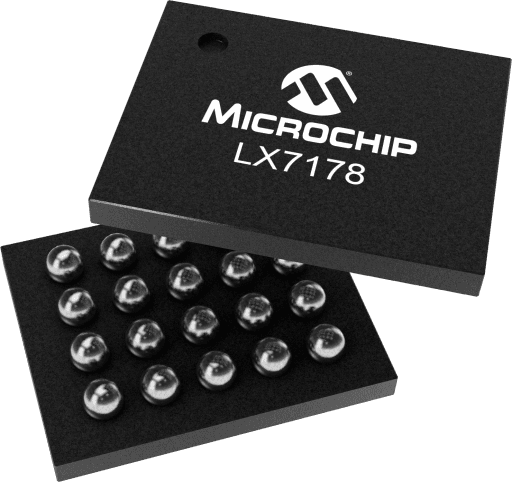

Microchip LX7178-01CSP-TR
Manufacturer No:
LX7178-01CSP-TR
Manufacturer:
Microchip
Package:
20-UFBGA, WLCSP
Description:
The LX7178 is a digitally controlled step-down regulator IC with an integrated 40mΩ high-side P-channel MOSFET and a 14mΩ low-side N-channel MOSFET. It features Microsemi’s proprietary constant-frequency hysteretic control engine for near-instantaneous correction to line/load transients. It does not require high-ESR output capacitors and incorporates energysaving “PSM” (Power Save or Pulse Skip Mode) at light loads, to extend battery life in mobile applications. The LX7178 has an I2C serial interface port for output voltage margining and monitoring if required (it can also operate in default mode). In addition it includes robust fault monitoring functions. The LX7178 will operate from 3V to 5.5V, and is available in 0.8V fixed output voltage option (no voltage divider is necessary). The output voltage can also be adjusted with an external voltage divider up to 3.3V.
Quantity:
In Stock :2795
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Thu, Jun 11 - Fri, Jun 12, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Available from AS9120 Certified Supplier, AIChipLink delivers high-reliability electronic components supported by certified quality management, rigorous inspection processes, counterfeit mitigation controls, and full traceability systems. Our operations comply with AS9120, ISO 9001:2015, and IECQ ESD standards to support aerospace, industrial, defense, and mission-critical applications.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
LX7178-01CSP-TR Information
Microchip LX7178-01CSP-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip LX7178-01CSP-TR.
- Type
- Parameter
- Regulator Type
- Step Down (Buck)
- Minimum Input Voltage (V)
- 3
- Maximum Input Voltage (V)
- 6
- Output Current (mA) Max
- 5000
- Duty Cycle Max (%)
- 100
- UVLO
- Yes
- Switching Frequency (kHz) kHz (kilohertz)
- 1875
- Input Voltage Range Min
- 3.0
- Input Voltage Range Max
- 5.5
- Output Current
- 5000
- Type
- Parameter
- Temp Range Max °C (degrees Celsius)
- 85
- Vout Min (V)
- 0.6
- Vout Max (V)
- 3.3
- Light Load Efficiency Mode
- Yes
- Switch current (A) typ
- 7.5
- Automotive Rated
- No
- Automotive Qualified
- No
- # of Outputs
- 1
- Vfb V (volt)
- 0.6
- Synchronous Rectifier
- Yes
Download datasheets and manufacturer documentation for Microchip LX7178-01CSP-TR.
User Guide:
Data Sheets:
The LX7178 is a digitally controlled step-down regulator IC with an integrated 40mΩ high-side P-channel MOSFET and a 14mΩ low-side N-channel MOSFET. It features Microsemi’s proprietary constant-frequency hysteretic control engine for near-instantaneous correction to line/load transients. It does not require high-ESR output capacitors and incorporates energysaving “PSM” (Power Save or Pulse Skip Mode) at light loads, to extend battery life in mobile applications. The LX7178 has an I 2 C serial interface port for output voltage margining and monitoring if required (it can also operate in default mode). In addition it includes robust fault monitoring functions. The LX7178 will operate from 3V to 5.5V, and is available in 0.8V fixed output voltage option (no voltage divider is necessary). The output voltage can also be adjusted with an external voltage divider up to 3.3V.
- Constant Frequency Hysteretic Control
- Extremely Fast Line/Load Transient Response
- I 2 C for Output Adjustment (3.4Mbps)
- 1.875 MHz Switching Frequency
- Extremely Low-RDSON MOSFETS
- Input Voltage Rail 3.3V to 5V
- Greater than 5A Output Current
- I 2 C Selectable Power Save Mode for Light-Load Efficiency
- UVLO, OVP, OCP
- 0°C to +85°C Ambient Temperature
- Available in WLCSP-20 (0.4mm pitch)
- RoHS Compliant
