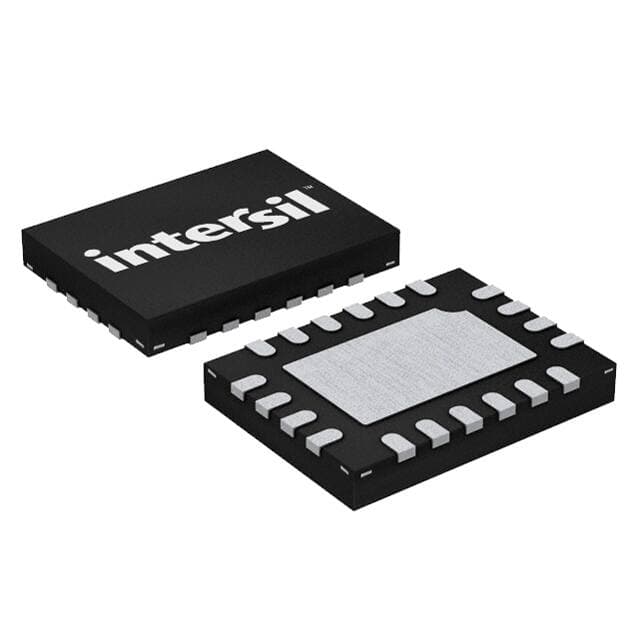

Renesas ISL95870AHRUZ-T

Manufacturer No:

ISL95870AHRUZ-T

Manufacturer:

Renesas

Package:

20-UFQFN

Description:

Controller, GPU Core Power 0.5V~5V NOT SPECIFIED Cel QUAD Specialized Voltage Regulator -10°C~100°C ISL95870 20 Pins 20 Terminations 20-UFQFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL95870AHRUZ-T information

Renesas ISL95870AHRUZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL95870AHRUZ-T.

Type
Parameter

Factory Lead Time
9 Weeks

Mounting Type
Surface Mount

Package / Case
20-UFQFN

Surface Mount
YES

Operating Temperature
-10°C~100°C

Packaging
Tape & Reel (TR)

Series
Robust Ripple Regulator? (R3)

Published
2004

JESD-609 Code
e4

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

Applications
Controller, GPU Core Power

Additional Feature
OUTPUT VOLTAGE RANGE: 0.5V TO 5V

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Terminal Pitch
0.4mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
ISL95870

Pin Count
20

Number of Outputs
1

Input Voltage-Nom
5V

Analog IC - Other Type
SWITCHING CONTROLLER

Voltage - Input
3.3V~25V

Voltage - Output
0.5V~5V

Control Mode
CURRENT-MODE

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
BUCK

Length
3.2mm

Height Seated (Max)
0.55mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL95870AHRUZ-T.

Datasheets:

renesaselectronicsamericainc-isl95870bhrztr5673-datasheets-5225.pdf

ConflictMineralStatement:

nec-dn1c100m1s-conflictmineralstatement-8243.pdf

ISL95870AHRUZ-T Overview

There are a total of 1 outputs supported by the voltage regulator. The rectifier regulator is packaged in 20-UFQFN for ease of transportation. In Tape & Reel (TR) package, ready for shipping. The general voltage output of this power supply regulator is 0.5V~5V. Surface Mount Universal mount allows for easy adaptation. The shunt regulator is intended for use in applications such as Controller, GPU Core Power and others. It is recommended that the operating temperature be set to -10°C~100°C in order to prevent malfunctions. The input voltage for this external regulator is designed to be 3.3V~25V. It is possible to find 20terminals on the voltage regulator. This electronic part is highly regarded as a SWITCHING CONTROLLER regulator. The rectifier regulator's pinout begins with 20pins. Search ISL95870 to find more pin-to-pin solutions. Please refer to the followong extra aspects of this variable voltage regulator: OUTPUT VOLTAGE RANGE: 0.5V TO 5V. Robust Ripple Regulator? (R3) corresponds to the electronic component's series.

ISL95870AHRUZ-T Features

Widely used in Controller, GPU Core Power applications
SWITCHING CONTROLLER analog IC

ISL95870AHRUZ-T Applications

There are a lot of Renesas Electronics America Inc.
ISL95870AHRUZ-T Specialized Voltage Regulators applications.

Notebook/Desktop/Server
Telecom/Datacom
GSM Base Station
LCD-TV/PDP-TV
Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
