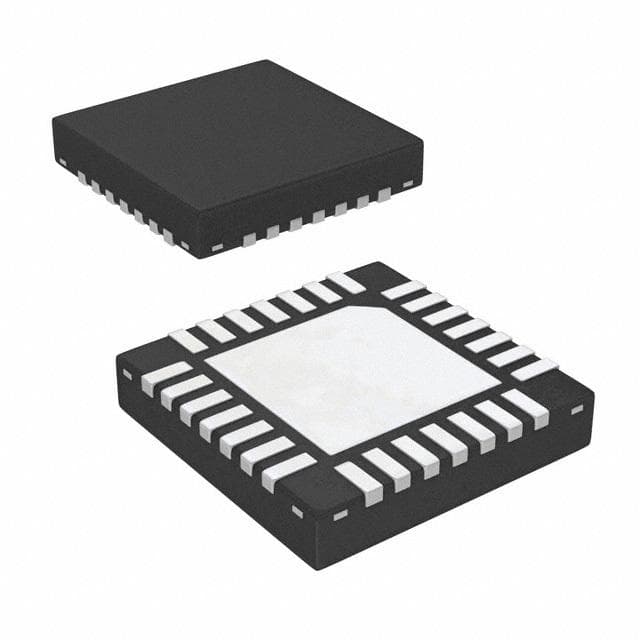

Renesas ISL9518HRTZ-T

Manufacturer No:

ISL9518HRTZ-T

Manufacturer:

Renesas

Package:

Description:

19V QUAD Battery Management ICs 19V 28 Pins

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL9518HRTZ-T information

Renesas ISL9518HRTZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL9518HRTZ-T.

Type
Parameter

Mount
Surface Mount

Number of Pins
28

Published
2006

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
100°C

Min Operating Temperature
-10°C

Additional Feature
ALSO OPERATES AS LDO REGULATOR

HTS Code
8542.39.00.01

Subcategory
Power Management Circuits

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
19V

Terminal Pitch
0.4mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
28

Qualification Status
Not Qualified

Input Voltage-Nom
19V

Power Supplies
19V

Temperature Grade
OTHER

Analog IC - Other Type
SWITCHING REGULATOR

Input Voltage (Min)
8V

Control Mode
CURRENT-MODE

Input Voltage (Max)
26V

Control Technique
PULSE WIDTH MODULATION

Supply Current-Max (Isup)
5mA

Switcher Configuration
BUCK

Switching Frequency-Max
440kHz

Length
4mm

Width
4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL9518HRTZ-T.

ISL9518HRTZ-T Overview

SWITCHING REGULATOR is the analog IC used by this power management IC. The smart tools battery has 28 pins in total. Mount this electronic part using Surface Mount. An electrical component of the type Power Management Circuits can be found here. You cannot activate this smart tools battery if it is less than -10°C. The electronic battery should be used below 100°C degrees Celsius. The manage ICs is powered by an electric current of 19V volts. All times this battery protection IC should be set to 19V. 28 pins are present on it. This battery instrument can be found to have ALSO OPERATES AS LDO REGULATOR. Ensure that the maximum supply current (Isup) is below 5mA.

ISL9518HRTZ-T Features

with 28 Pins
operate supply voltage at the range of 19V
Output Voltage at the range of 5.1V

ISL9518HRTZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL9518HRTZ-T Battery Management ICs applications.

Electric-powered machinery
Fork lifts
Grid power infrastructure
Cell phone towers
A/C power substations
Internet infrastructure equipment
Aviation ground support systems
Tower communications
Weather stations
Distributed energy resources
