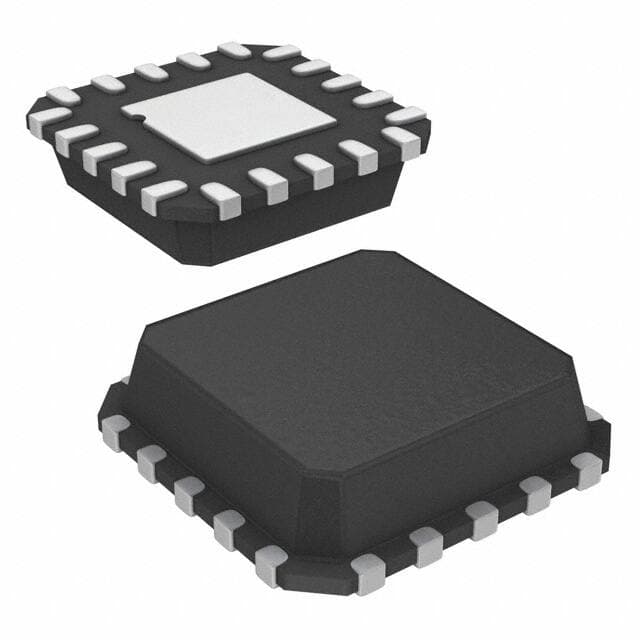

Renesas ISL9307IRTAANWZ-T7A

Manufacturer No:

ISL9307IRTAANWZ-T7A

Manufacturer:

Renesas

Package:

16-WQFN Exposed Pad

Description:

0.65mm PMIC ISL9307 16-WQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL9307IRTAANWZ-T7A information

Renesas ISL9307IRTAANWZ-T7A technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL9307IRTAANWZ-T7A.

Type
Parameter

Factory Lead Time
18 Weeks

Mounting Type
Surface Mount

Package / Case
16-WQFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

Terminal Finish
MATTE TIN

Additional Feature
PFM TECHNIQUE ALSO USED

Voltage - Supply
1.5V~5.5V

Terminal Position
QUAD

Number of Functions
1

Terminal Pitch
0.65mm

Base Part Number
ISL9307

Pin Count
16

JESD-30 Code
S-PQCC-N16

Number of Outputs
4

Input Voltage-Nom
3.3V

Analog IC - Other Type
SWITCHING REGULATOR

Input Voltage (Min)
2.5V

Topology
Step-Down (Buck) Synchronous (2), Linear (LDO) (2)

Output Current-Max
2.75A

Frequency - Switching
3MHz

Input Voltage (Max)
5.5V

Control Technique
PULSE WIDTH MODULATION

w/Sequencer
No

Voltage/Current - Output 1
0.8V~5.5V 1.5A

Voltage/Current - Output 2
0.8V~5.5V 1.5A

Voltage/Current - Output 3
3.3V 300mA

Height Seated (Max)
0.8mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL9307IRTAANWZ-T7A.

Datasheets:

renesaselectronicsamericainc-isl9307irtaanfzt7a-datasheets-8711.pdf

ISL9307IRTAANWZ-T7A Overview

It is packaged in 16-WQFN Exposed Pad for voltage regulators' voltage regulators' transportation.Ready for shipping in Tape & Reel (TR) package.Voltage regulator supports 4 outputs in total.The operating temperature should be set to -40°C~85°C to avoid mal-function.Try search "ISL9307" to get more pin-to-pin solutions for your special needs.You can find 16 terminals of the voltage regulator 12v.The pinout of the switching regulator starts from 16 pins it has.The IC specialliPFM TECHNIQUE ALSO USEDes itself in certain areas along with PFM TECHNIQUE ALSO USED.

ISL9307IRTAANWZ-T7A Features

4 outputs
Operating Temperature: -40°C~85°C
PFM TECHNIQUE ALSO USED

ISL9307IRTAANWZ-T7A Applications

There are a lot of Renesas Electronics America Inc.
ISL9307IRTAANWZ-T7A Linear Regulator Controllers applications.

Ultrahigh current ultralow dropout voltage regulator
Constant high-current source
Low parts count 5.0V to 3.3V computer supply
Low noise SMPS post regulator
Low-dropout SMPS post regulator
High-current, current-limited switch
Dual/Triple Power Supplies
Desknotes and Notebooks
Graphic Cards
Ultra-Low-Dropout
