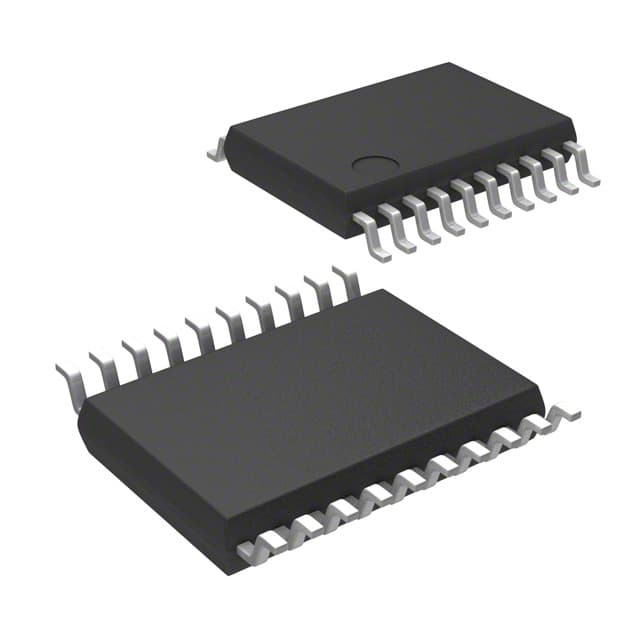

Microchip SY100EP14UK4G-TR
Manufacturer No:
SY100EP14UK4G-TR
Manufacturer:
Microchip
Package:
20-TSSOP (0.173, 4.40mm Width)
Description:
2.5V-5V 1:5 PECL Fanout Buffer
Quantity:
In Stock :4274
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Sun, Jun 21 - Mon, Jun 22, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Available from AS9120 Certified Supplier, AIChipLink delivers high-reliability electronic components supported by certified quality management, rigorous inspection processes, counterfeit mitigation controls, and full traceability systems. Our operations comply with AS9120, ISO 9001:2015, and IECQ ESD standards to support aerospace, industrial, defense, and mission-critical applications.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
SY100EP14UK4G-TR Information
Microchip SY100EP14UK4G-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip SY100EP14UK4G-TR.
- Type
- Parameter
- Description
- 2:5
- Input
- PECL, LVPECL, ECL, HSTL
- Output
- LVPECL
- Supply Voltage
- 2.5/3.3/5
- Max Freq (GHz)
- 2
- Icc (mA)
- 75
- Max Within Device Skew (ps)
- 25
- OE
- True
- Input Mux
- True
- Number Of Outputs
- 0
- Type
- Parameter
- Buffer Type
- Fanout
- Fanout
- 1:5
- Max Prop Delay (ps)
- 600
Download datasheets and manufacturer documentation for Microchip SY100EP14UK4G-TR.
Application Notes:
Data Sheets:
The SY100EP14U is a high-speed, 2GHz differential PECL/ECL 1:5 fanout buffer optimized for ultra-low skew applications. Within device skew is guaranteed to be less than 25ps over temperature and supply voltage. The wide supply voltage operation allows this fanout buffer to operate in 2.5V, 3.3V, and 5V systems. A VBB reference is included for single-supply or AC-coupled PECL/ECL input applications, thus eliminating resistor networks. When interfacing to a single-ended or AC-coupled PECL/ECL input signal, connect the VBB pin to the unused /CLK pin, and bypass the pin to VCC through a 0.01µF capacitor.
The SY100EP14U features a 2:1 input MUX, making it an ideal solution for redundant clock switchover applications. If only one input pair is used, the other pair may be left floating. In addition, this device includes a synchronous enable pin that forces the outputs into a fixed logic state. Enable or disable state is initiated only after the outputs are in a LOW state, thus eliminating the possibility of a "runt" clock pulse.
The SY100EP14U I/O are fully differential and 100K ECL compatible. Differential 10K ECL logic can interface directly into the SY100EP14U inputs.The SY100EP14U is part of Micrel's high-speed clock synchronization family. For applications that require a different I/O combination, choose from a comprehensive product line of high-speed, low-skew fanout buffers, translators, and clock generators.
The SY100EP14U features a 2:1 input MUX, making it an ideal solution for redundant clock switchover applications. If only one input pair is used, the other pair may be left floating. In addition, this device includes a synchronous enable pin that forces the outputs into a fixed logic state. Enable or disable state is initiated only after the outputs are in a LOW state, thus eliminating the possibility of a "runt" clock pulse.
The SY100EP14U I/O are fully differential and 100K ECL compatible. Differential 10K ECL logic can interface directly into the SY100EP14U inputs.The SY100EP14U is part of Micrel's high-speed clock synchronization family. For applications that require a different I/O combination, choose from a comprehensive product line of high-speed, low-skew fanout buffers, translators, and clock generators.
- >2GHz fMAX
- <25ps within-device skew
- <275ps tr/tf time
- <525ps prop delay
- 2:1 Differential MUX input
- Flexible supply voltage: 2.5V/3.3V/5V
- Wide operating temperature range: -40°C to +85°C
- VBB reference for single-ended or AC-coupled PECL inputs
- 100K ECL compatible outputs
- Inputs accept PECL/LVPECL/ECL/HSTL logic
- 75k internal input pull-down resistors
- Available in a 20-Pin TSSOP package
SY100EP14UK4G-TR FAQ
Can I request a quote for SY100EP14UK4G-TR?
SY100EP14UK4G-TR from Microchip is ready for RFQ submission. Send your target quantity and requirements, and AIChipLink will check current availability, lead time, and quantity-based pricing.
Why is pricing not shown as a fixed value for SY100EP14UK4G-TR?
The final price for SY100EP14UK4G-TR depends on requested quantity, supply conditions, date code, package option, and destination. An RFQ lets us return the current market quote for your order.
Which specifications should I review for SY100EP14UK4G-TR?
SY100EP14UK4G-TR is a Microchip Clock and Data Distribution part. Key details include Max Within Device Skew (ps): 25 and Max Prop Delay (ps): 600; contact us if you need the specifications verified before sourcing.
When will I receive a quotation for SY100EP14UK4G-TR?
After you submit the RFQ for SY100EP14UK4G-TR, our sales team typically replies within 24 hours with availability, unit pricing, lead time, shipping choices, and possible substitutes.
What is the expected shipping time for SY100EP14UK4G-TR?
Once stock for SY100EP14UK4G-TR is confirmed, available inventory can generally ship within 1–2 business days. The final schedule depends on quantity, warehouse source, and delivery address.
Can AIChipLink help find alternatives to SY100EP14UK4G-TR?
Yes. If SY100EP14UK4G-TR is unavailable, end-of-life, or outside your schedule, we can review comparable Microchip Clock and Data Distribution parts and compatible replacement options.
