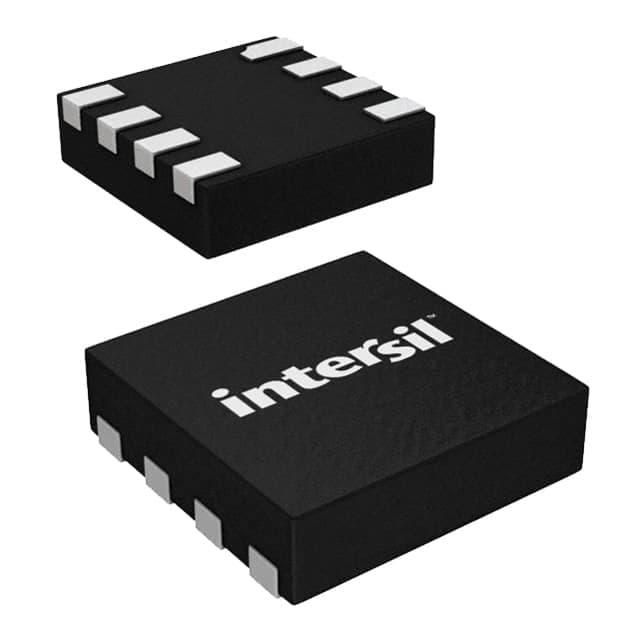

Renesas ISL9211AIRU48XZ-T

Manufacturer No:

ISL9211AIRU48XZ-T

Manufacturer:

Renesas

Package:

8-UFDFN Exposed Pad

Description:

-40°C~85°C TA 1 Channel DUAL Battery Management ICs ISL9211 Lithium-Ion 8-UFDFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL9211AIRU48XZ-T information

Renesas ISL9211AIRU48XZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL9211AIRU48XZ-T.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
8-UFDFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
5A (24 Hours)

Number of Terminations
8

Terminal Finish
Matte Tin (Sn)

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
ISL9211

JESD-30 Code
S-PDSO-N8

Function
Battery Monitor

Supply Voltage-Max (Vsup)
24V

Supply Voltage-Min (Vsup)
4.3V

Number of Channels
1

Analog IC - Other Type
POWER SUPPLY SUPPORT CIRCUIT

Adjustable Threshold
YES

Fault Protection
Over Current, Over Voltage

Length
2mm

Height Seated (Max)
0.55mm

Width
2mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL9211AIRU48XZ-T.

ISL9211AIRU48XZ-T Overview

It is appropriate for the 8-UFDFN Exposed Pad package. POWER SUPPLY SUPPORT CIRCUIT is the analog IC that this power IC employs. There are 1 channels available. It's packaged in a Tape & Reel (TR) case. This electronic component is mounted in the way of Surface Mount. It is able to deliver the Battery Monitor functions. It is best for the electric part to operate temperature at the range of -40°C~85°C TA to deliver its performance. The battery chemistry of this electronic component includes Lithium-Ion. It is based on ISL9211 family. The maximal supply voltage (Vsup) reaches 24V. The Vsup (supply voltage) must be greater than 4.3V.

ISL9211AIRU48XZ-T Features

Available in 8-UFDFN Exposed Pad Package
Mounting Type: Surface Mount
Battery Chemistry : Lithium-Ion
Supply Voltage-Max (Vsup) : 24V

ISL9211AIRU48XZ-T Applications

There are a lot of Renesas Electronics America Inc.
ISL9211AIRU48XZ-T Battery Management ICs applications.

Electric vehicles
Electric cars
Trucks
Non-road type vehicles
Golf carts
Electric-powered machinery
Fork lifts
Grid power infrastructure
Cell phone towers
A/C power substations
