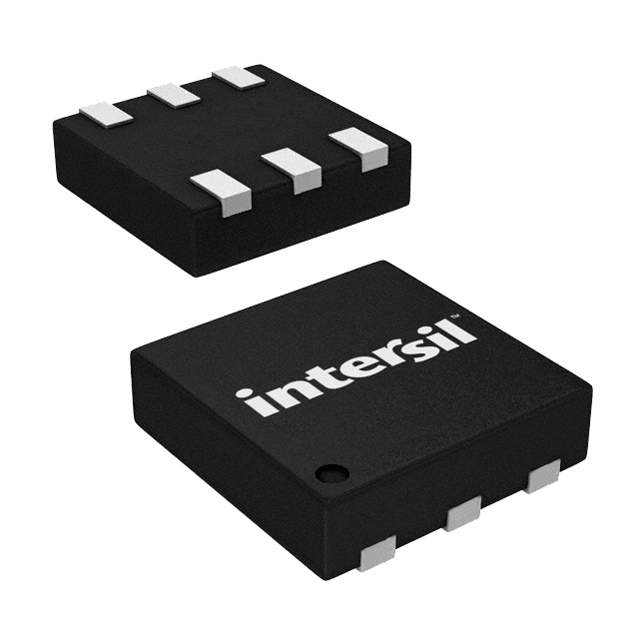

Renesas ISL9104IRUBZ-T7A

Manufacturer No:

ISL9104IRUBZ-T7A

Manufacturer:

Renesas

Package:

Description:

6 Terminals 6-Pin DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 4.3MHz Tape & Reel 500mA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL9104IRUBZ-T7A information

Renesas ISL9104IRUBZ-T7A technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL9104IRUBZ-T7A.

Type
Parameter

Factory Lead Time
5 Weeks

Mount
Surface Mount

Number of Pins
6

Packaging
Tape & Reel

Published
2009

JESD-609 Code
e4

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
ALSO HAS PFM CONTROL TECHNIQUE

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Number of Functions
1

Terminal Pitch
0.5mm

Pin Count
6

Number of Outputs
1

Efficiency
93 %

Output Voltage
0.8V

Output Type
Fixed

Max Output Current
500mA

Input Voltage-Nom
3.6V

Temperature Grade
INDUSTRIAL

Analog IC - Other Type
SWITCHING REGULATOR

Current - Output
500mA

Quiescent Current
20μA

Voltage - Output
1.5V

Min Input Voltage
2.7V

Control Mode
CURRENT-MODE

Frequency - Switching
4.3MHz

Max Input Voltage
6V

Control Technique
PULSE WIDTH MODULATION

Synchronous Rectifier
Yes

Switcher Configuration
BUCK

Height Seated (Max)
0.55mm

Width
1.6mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL9104IRUBZ-T7A.

Datasheets:

intersil-isl9104irubzt7a-datasheets-1542.pdf

ISL9104IRUBZ-T7A Overview

For optimal performance, this voltage regulator makes use of the Tape & Reel package. In this voltage regulator, there are a total of 6 terminations. There is one type of analog IC that this voltage regulator is equipped with, and that is the SWITCHING REGULATOR type. There are 1 outputs configured on this voltage regulator 12v. There are output pins on this DC DC switching regulator that generate Fixed output. This DC-DC switching regulator has a switching frequency of 4.3MHz. It features maximum design flexibility due to dc to dc voltage regulator's 500mA output current. In order to meet the operation requirements,voltage regulator is designed to provide a nominal input voltage of 3.6V. There is a subcategory called Switching Regulator or Controllers that includes this voltage regulator. The voltage DC DC switching regulator can produce is 0.8V volts. There are 6 pins that are used for the operation of the voltage regulator 12v. The maximum output current reaches 500mA A to meet the switching regulator operation requirements. 6V is the supply voltage for this DC-DC switching regulator. Despite external influences, voltage regulator consumes 20μA A of quiescent current. This switching regulator is more efficient and stable due to the ALSO HAS PFM CONTROL TECHNIQUE feature. The high-limit maximum operating temperature 85°C allows harley voltage regulator stable operation. To ensure reliability, harley voltage regulator operates at a minimum operating temperature of -40°C. Input voltages as low as 2.7V can be used for DC DC switching regulator. It is designed to sustain a dc to dc voltage regulator's maximum 6V input voltage. There are 6 pins on this DC-DC switching regulator. The DC DC switching regulator's voltage output is 1.5V.
