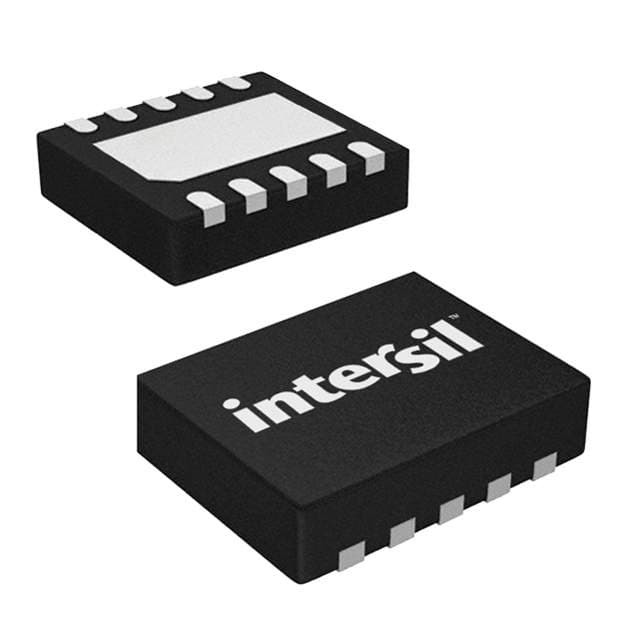

Renesas ISL8484IR

Manufacturer No:

ISL8484IR

Manufacturer:

Renesas

Package:

Description:

DUAL Analog Switches BREAK-BEFORE-MAKE 10 Pins 3V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL8484IR information

Renesas ISL8484IR technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL8484IR.

Type
Parameter

Mount
Surface Mount

Packaging
Bulk

Published
2001

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
10

Resistance
500mOhm

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Multiplexer or Switches

Technology
CMOS

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
240

Number of Functions
2

Supply Voltage
3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Output
SEPARATE OUTPUT

Pin Count
10

JESD-30 Code
S-PDSO-N10

Qualification Status
Not Qualified

Power Supplies
1.8/4.3V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
1.65V

Number of Channels
1

Operating Supply Current
100nA

Number of Bits
2

Throw Configuration
SPDT

Supply Type
Single

Off-state Isolation-Nom
68 dB

On-state Resistance Match-Nom
0.03Ohm

Switching
BREAK-BEFORE-MAKE

Switch-on Time-Max
30ns

Length
3mm

Height Seated (Max)
0.8mm

Width
3mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL8484IR.

Datasheets:

intersil-isl8484ir-datasheets-9238.pdf

ISL8484IR Overview

A high level of reliability can be achieved through the use of an advanced packaging method Bulk. Total terminations are 10. The electronic part provides high-quality output because it has 1 channels. Powered by a 3V voltage supply, the electrical part should be switched on and run. The electrical component body receives 10 pins. An switch multiplexer with 500mOhm internal resistance has a value of 500mOhm. The analogue multiplexer in this example is a typical Multiplexer or Switches. The analog switch ic is of the Single supply type and is cost-effective. An operating current of 100nA would be sufficient for this switch device. SEPARATE OUTPUT outputs are utilized by this digital multiplexer. Temperatures above 85°C degrees Celsius should not be operated by the multiplexer. It conducts in a 2-bit manner. Providing the analog switch ic with electricity requires a minimum voltage of 1.65V.

ISL8484IR Features

1 Channels
100nA Supply Current
2-Bit

ISL8484IR Applications

There are a lot of Intersil (Renesas Electronics America)
ISL8484IR Analog Switches & Multiplexers ICs applications.

Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
