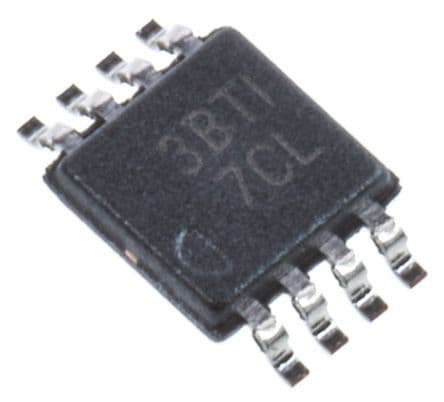

Renesas ISL28230FUZ-T7A
Manufacturer No:
ISL28230FUZ-T7A
Manufacturer:
Package:
MSOP
Description:
15mA per Channel 250pA 125 dB Instrumentational OP Amps 5.5V MSOP
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ISL28230FUZ-T7A information
Renesas ISL28230FUZ-T7A technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL28230FUZ-T7A.
- Type
- Parameter
- Factory Lead Time
- 10 Weeks
- Mount
- Surface Mount
- Package / Case
- MSOP
- Number of Pins
- 8
- Packaging
- Cut Tape
- Published
- 2006
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 2 (1 Year)
- Number of Terminations
- 8
- ECCN Code
- EAR99
- Terminal Finish
- Matte Tin (Sn) - annealed
- Max Operating Temperature
- 125°C
- Min Operating Temperature
- -40°C
- Subcategory
- Operational Amplifiers
- Packing Method
- TAPE AND REEL
- Technology
- CMOS
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Number of Functions
- 2
- Terminal Pitch
- 0.635mm
- Qualification Status
- Not Qualified
- Operating Supply Voltage
- 5.5V
- Temperature Grade
- AUTOMOTIVE
- Max Supply Voltage
- 5.5V
- Operating Supply Current
- 20mA
- Nominal Supply Current
- 20μA
- Slew Rate
- 0.2 V/μs
- Architecture
- VOLTAGE-FEEDBACK
- Amplifier Type
- OPERATIONAL AMPLIFIER
- Common Mode Rejection Ratio
- 125 dB
- Current - Input Bias
- 250pA
- Output Current per Channel
- 15mA
- Input Offset Voltage (Vos)
- 5μV
- Bandwidth
- 400 kHz
- Gain Bandwidth Product
- 400 kHz
- Power Supply Rejection Ratio (PSRR)
- 138dB
- Low-Offset
- YES
- Frequency Compensation
- YES
- Low-Bias
- YES
- Micropower
- YES
- Input Voltage Noise Density
- 65nV/sqrt Hz
- REACH SVHC
- Unknown
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Renesas ISL28230FUZ-T7A.
ISL28230FUZ-T7A Overview
There is a MSOP case in which the instrumentation amplifier is packaged. Buffer amps of this type are called OPERATIONAL AMPLIFIER-types. A Cut Tape case is used to deliver the buffer op amp. The number of terminations is approaching the 8 mark. In order to be more specific, this instrumentation amplifier is one of the types of Operational Amplifiers devices. 8 pins are included on the operational amplifiers. As far as the input offset voltage is concerned, linear amplifier rates at 5μV. It is possible to operate this buffer amplifier from a supply current of 20mA . A linear amplifier like this has 2 circuits on it. In order for this buffer op amp to function, it should have a temperature of at least -40°C degrees Celsius. At temperatures greater than 125°C, Instrumentation amplifier should not be used. The operating supply voltage of the buffer op amp is rated at 5.5V. For the packing of the instrumentation amplifier, TAPE AND REEL is adopted. The electrical part is capable of being powered by a voltage of under 5.5V, which means that it can be used with any voltage supply.
ISL28230FUZ-T7A Features
ISL28230FUZ-T7A Applications
There are a lot of Intersil (Renesas Electronics America)
ISL28230FUZ-T7A Instrumentational OP Amps applications.
- Subtraction operation circuits
- single/dual op amp sum and difference circuits
- Integrator circuits
- Differentiator circuits
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
- Division circuits
- Precision measurement
- Power control
