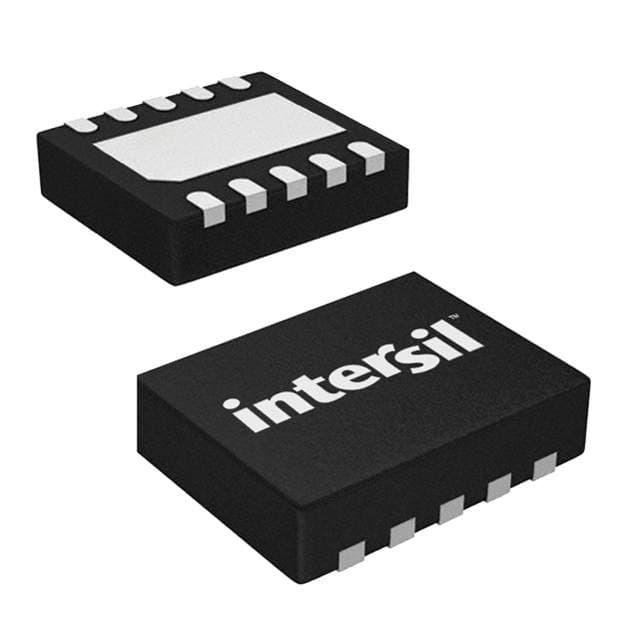

Renesas ISL84762IR-T

Manufacturer No:

ISL84762IR-T

Manufacturer:

Renesas

Package:

Description:

DUAL Analog Switches BREAK-BEFORE-MAKE 10 Pins 3V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL84762IR-T information

Renesas ISL84762IR-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL84762IR-T.

Type
Parameter

Mount
Surface Mount

Packaging
Tape & Reel (TR)

Published
2001

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
10

Resistance
600mOhm

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Multiplexer or Switches

Technology
CMOS

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
240

Number of Functions
2

Supply Voltage
3V

Terminal Pitch
0.5mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Output
SEPARATE OUTPUT

Pin Count
10

JESD-30 Code
S-PDSO-N10

Supply Voltage-Max (Vsup)
3.6V

Power Supplies
1.8/3V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
1.65V

Number of Channels
1

Operating Supply Current
40nA

Number of Bits
2

Throw Configuration
SPDT

Supply Type
Single

Off-state Isolation-Nom
68 dB

On-state Resistance Match-Nom
0.05Ohm

Switching
BREAK-BEFORE-MAKE

Length
3mm

Height Seated (Max)
0.8mm

Width
3mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL84762IR-T.

Datasheets:

intersil-isl84762irt-datasheets-8320.pdf

ISL84762IR-T Overview

The advanced packaging method Tape & Reel (TR) provides high reliability. The total number of terminations is 10. As a result of its 1 channels, this electronic component provides high-quality output. An 3V voltage supply should allow the electrical part to be turned on and run. A total of 10 pins are injected into the body of the electronic part. The internal resistance of this digital multiplexer is 600mOhm. Multiplexer or Switches is a typical switch device. Analogue multiplexer with a Single supply type that is cost-effective. This multiplexer would work with 40nA current. A total of SEPARATE OUTPUT outputs are available on this analog switch ic. It is not recommended to operate the switches in an environment with a temperature higher than 85°C. 2-bit conductivity is possible. To supply the switch device, a voltage of 1.65V must be applied.

ISL84762IR-T Features

1 Channels
40nA Supply Current
2-Bit

ISL84762IR-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL84762IR-T Analog Switches & Multiplexers ICs applications.

Low-Voltage
Isolation
Medical
Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
