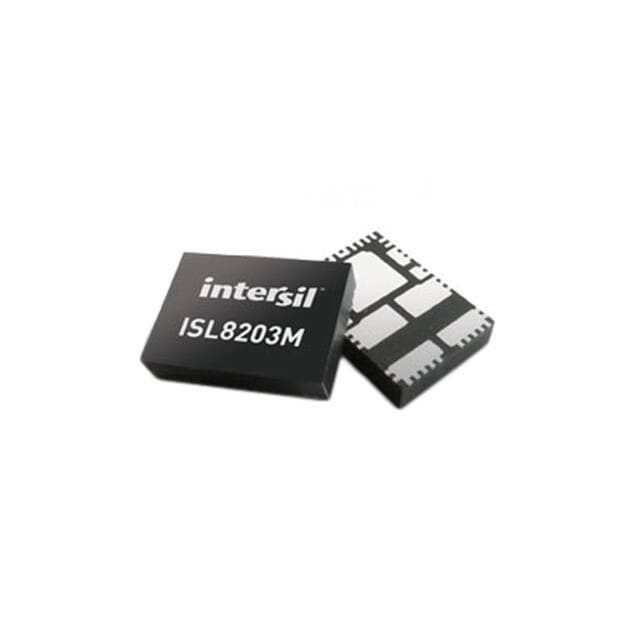

Renesas ISL8203MIRZ
Renesas ISL8203MIRZ

Renesas ISL8203MIRZ

Manufacturer No:

ISL8203MIRZ

Manufacturer:

Renesas

Package:

23-PowerFQFN Module

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL8203MIRZ information

Renesas ISL8203MIRZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL8203MIRZ.

  • Type
  • Parameter
  • Factory Lead Time
  • 13 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 23-PowerFQFN Module
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tray
  • Size / Dimension
  • 0.35Lx0.26W x 0.07 H 9.0mmx6.5mmx1.9mm
  • JESD-609 Code
  • e3
  • Feature
  • OCP, OTP, SCP, UVLO
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 23
  • ECCN Code
  • EAR99
  • Type
  • Non-Isolated PoL Module
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • ITE (Commercial)
  • Additional Feature
  • OUTPUT VOLTAGE IS ADJUSTABLE FROM 0.8V TO 5V
  • Terminal Position
  • QUAD
  • Terminal Form
  • NO LEAD
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 1
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Pin Count
  • 23
  • Number of Outputs
  • 2
  • Voltage - Input (Max)
  • 6V
  • Output Voltage
  • 800mV
  • Voltage - Output 1
  • 0.8V~5V
  • Voltage - Input (Min)
  • 2.85V
  • Input Voltage-Nom
  • 5V
  • Current - Output (Max)
  • 3A 3A
  • Output Current
  • 3A
  • Voltage - Output 2
  • 0.8V~5V
  • Control Mode
  • CURRENT-MODE
  • Control Technique
  • PULSE WIDTH MODULATION
  • Switcher Configuration
  • BUCK
  • Switching Frequency-Max
  • 4000kHz
  • Length
  • 9mm
  • Width
  • 6.5mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL8203MIRZ.

Datasheets:

ConflictMineralStatement:

The Renesas ISL8203MIRZ is a high-efficiency, low-noise, synchronous step-down DC-DC converter. It is designed to provide a regulated output voltage from 0.8V to 5V with a maximum output current of 3A. The device features a wide input voltage range of 4.5V to 18V, making it suitable for a variety of applications. It also features a low quiescent current of only 10uA, making it ideal for battery-powered applications.

The ISL8203MIRZ features a high-efficiency, synchronous buck topology with a fixed frequency of 1.2MHz. It also features a programmable soft-start, over-current protection, and thermal shutdown. The device is available in a small, thermally enhanced, 8-pin LLP package.

The ISL8203MIRZ is suitable for a variety of applications, including portable electronics, automotive, and industrial systems. It is also suitable for powering FPGAs, ASICs, and other low-voltage logic circuits.
