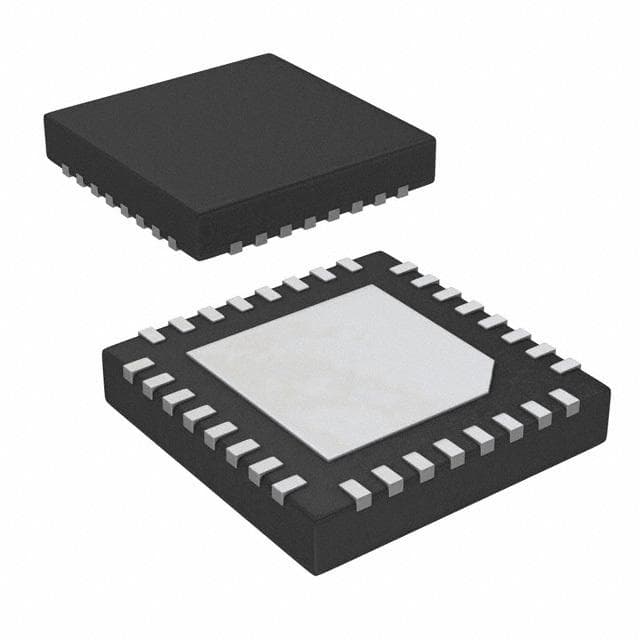

Renesas ISL8120IRZEC
Manufacturer No:
ISL8120IRZEC
Manufacturer:
Package:
QFN EP
Description:
32 Terminals 32-Pin DC to DC converter IC DUAL SWITCHING CONTROLLER 2 Outputs 1.5MHz
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ISL8120IRZEC information
Renesas ISL8120IRZEC technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL8120IRZEC.
- Type
- Parameter
- Mount
- Surface Mount
- Package / Case
- QFN EP
- Number of Pins
- 32
- Published
- 2002
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 32
- ECCN Code
- EAR99
- Terminal Finish
- Matte Tin (Sn) - annealed
- Max Operating Temperature
- 85°C
- Min Operating Temperature
- -40°C
- Subcategory
- Switching Regulator or Controllers
- Terminal Position
- QUAD
- Terminal Form
- NO LEAD
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Terminal Pitch
- 0.5mm
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Pin Count
- 32
- Number of Outputs
- 2
- Qualification Status
- Not Qualified
- Input Voltage-Nom
- 3.3V
- Analog IC - Other Type
- DUAL SWITCHING CONTROLLER
- Current - Output
- 60A
- Frequency (Max)
- 1.5MHz
- Voltage - Output
- 19.8V
- Input Voltage (Min)
- 3V
- Control Mode
- VOLTAGE-MODE
- Frequency - Switching
- 1.5MHz
- Control Technique
- PULSE WIDTH MODULATION
- Switcher Configuration
- PHASE-SHIFT
- Max Duty Cycle
- 90 %
- Duty Cycle (Max)
- 90 %
- Length
- 5mm
- Height Seated (Max)
- 1mm
- Width
- 5mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Renesas ISL8120IRZEC.
ISL8120IRZEC Overview
With a QFN EP package, the switching controller is suitable for a wide range of applications. For 2 outputs, the dc motor controller is appropriate. Switching can be done at 1.5MHz with this switching controller. A DUAL SWITCHING CONTROLLER analog IC is connected to the switch converters. The switching converters's terminals (s) are designed at QUAD. An array of 32 terminations of dc switching. These dc dc converter ics adapt a variety of control techniques, including PULSE WIDTH MODULATION. The nominal DC switcher's voltage input is 3.3V. There are a total of 32 pins on switching converter. In particular, switching converter is a type of Switching Regulator or Controllers. It is recommended that the input voltage of the dc dc voltage regulator be 3V. It is set to 90 % duty cycle to ensure voltage regulator dc to dc reliability during power-ups and power-downs. In most applications and prototypes, DC switcher's Surface Mount makes it suitable. Ideally, dc regulator should be kept at a temperature of -40°C or higher. The temperature should not exceed 85°C degrees Celsius. In total, the switch converters have 1 function (s). We are designing chips that have 32 pins. There is a maximum frequency of 1.5MHz that the controller can switch at. Switching controllers with 60A inputs are ideal for it. As a result of normalworking processes, a voltage of 19.8V is output.
ISL8120IRZEC Features
Switching Frequency: 1.5MHz
PULSE WIDTH MODULATION
Max Duty Cycle: 90 %
ISL8120IRZEC Applications
There are a lot of Intersil (Renesas Electronics America)
ISL8120IRZEC DC to DC converter applications.
- Servo drive system
- Digital display device
- Linear guide
- Ball screw pair
- Computer application technology
- Network technology
- Automation technology
- CMM
- Various precision measuring instruments
- Various precision measuring detectors
