Manufacturer No:

NCP81295MNTXG

Manufacturer:

ONSEMI

Package:

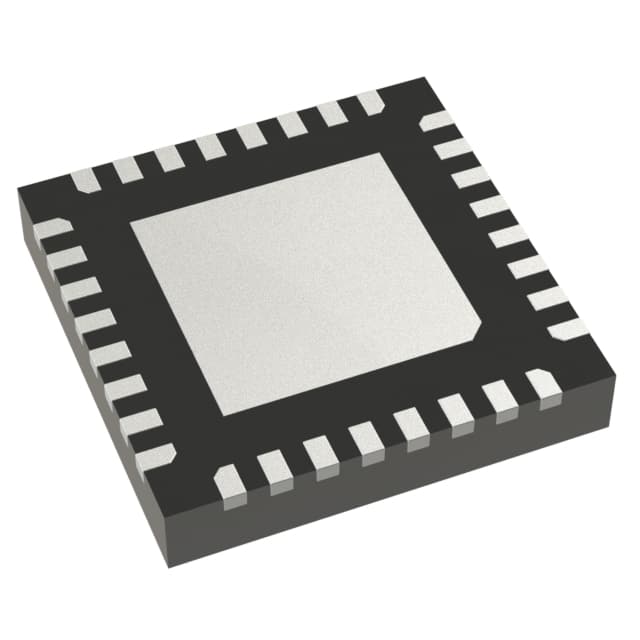

32-LFQFN Exposed Pad

Description:

50A, Hotswap Controller with Internal MOSFET and IMON function with paralleling capability in a thermally enhanced package

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCP81295MNTXG information

ONSEMI NCP81295MNTXG technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCP81295MNTXG.

  • Type
  • Parameter
  • Adjustable Slew Rate (Y/N)
  • Y
  • MSL Type
  • 3
  • MSL Temp (°C)
  • 260
  • Over Current - Shutdown (Y/N)
  • Y
  • Current Limit (FIXED/ADJ/NO)
  • ADJ
  • Reverse Current Blocking (Y/N)
  • N
  • PGOOD (Y/N)
  • Y
  • IMON Output (Y/N)
  • Y
  • Vin Max (V)
  • 18
  • Input / Output
  • 1/1
  • Package Type
  • LQFN-32
  • Case Outline
  • 487AA
  • Rds(on) Typ (mΩ)
  • 0.65
  • Max Current (A)
  • 60
  • Vin Min (V)
  • 4.5
  • Iq (µA)
  • 3.23
  • Container Qty.
  • 2500
  • Over Voltage Protection (Y/N)
  • Y
  • FAULT Signal (Y/N)
  • Y
  • UVLO (Y/N)
  • Y
  • Output Discharge (Y/N)
  • Y
  • eFuse / Hot Plug (Y/N)
  • Y
  • Product Family
  • eFuse
  • Container Type
  • REEL

Download datasheets and manufacturer documentation for ONSEMI NCP81295MNTXG.

Datasheet:

Package Drawing:

The NCP81295 and NCP81296 are hotswap controllers with a low on resistance MOSFET (0.65mohms). These devices provide overcurrent protection during short circuit and overcurrent condition. It low on resistance reduces losses and the current is monitored by the internally current mirror, thus eliminating the need for a sense resistor, thereby saving power and cost. These devices can be paralleled for higher current conditions. Robust soft operating area performance helps minimize the number of paralleled device in higher current applications. The NCP81295 offers latch up during overcurrent while the NCP81296 offers hiccup operation.Both parts are offered in a thermally enhanced 5mm by 5mm QFN package.

Application

  • Servers
  • Storage
  • Base Band Unit
  • 12V Backplanes

End Product

  • Servers
  • Storage
  • Base Stations

Feature

  • Low 0.65mohms internal mosfet
  • Overcurrent protection against short circuit, overcurrent condition, and soft shorts
  • Analog IMON
  • Close loop operation during soft start
  • Enhanced 5mm by 5mm QFN
  • 4.5V to 18V oeprating range
