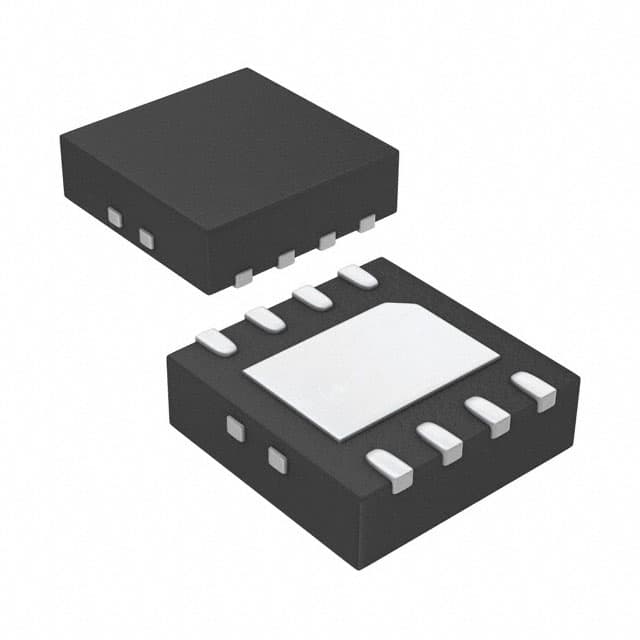

Renesas ISL80030AFRZ-T
Manufacturer No:
ISL80030AFRZ-T
Manufacturer:
Package:
DFN
Description:
8 Terminals DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 2MHz Tape & Reel (TR) 3A DFN
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ISL80030AFRZ-T information
Renesas ISL80030AFRZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL80030AFRZ-T.
- Type
- Parameter
- Factory Lead Time
- 5 Weeks
- Mount
- Surface Mount
- Package / Case
- DFN
- Packaging
- Tape & Reel (TR)
- Published
- 2015
- JESD-609 Code
- e3
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 8
- ECCN Code
- EAR99
- Terminal Finish
- Matte Tin (Sn) - annealed
- Max Operating Temperature
- 125°C
- Min Operating Temperature
- -40°C
- Terminal Position
- DUAL
- Terminal Form
- NO LEAD
- Number of Functions
- 1
- Terminal Pitch
- 0.5mm
- Pin Count
- 8
- JESD-30 Code
- S-PDSO-N8
- Number of Outputs
- 1
- Output Type
- Adjustable
- Input Voltage-Nom
- 3.6V
- Temperature Grade
- AUTOMOTIVE
- Analog IC - Other Type
- SWITCHING REGULATOR
- Output Configuration
- Positive
- Quiescent Current
- 10mA
- Max Output Voltage
- 5.5V
- Min Input Voltage
- 2.7V
- Control Mode
- CURRENT-MODE
- Frequency - Switching
- 2MHz
- Max Input Voltage
- 5.5V
- Control Technique
- PULSE WIDTH MODULATION
- Synchronous Rectifier
- Yes
- Min Output Voltage
- 600mV
- Switcher Configuration
- BUCK
- Length
- 2mm
- Width
- 2mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Renesas ISL80030AFRZ-T.
ISL80030AFRZ-T Overview
For optimal performance, this voltage regulator makes use of the Tape & Reel (TR) package. In this voltage regulator, there are a total of 8 terminations. There is one type of analog IC that this voltage regulator is equipped with, and that is the SWITCHING REGULATOR type. In order to save space, this harley voltage regulator is available in the DFN package. There are 1 outputs configured on this voltage regulator 12v. There are output pins on this DC DC switching regulator that generate Adjustable output. This DC-DC switching regulator has a switching frequency of 2MHz. It features maximum design flexibility due to dc to dc voltage regulator's 3A output current. In order to meet the operation requirements,voltage regulator is designed to provide a nominal input voltage of 3.6V. There should be at least a 600mV volt output voltage for this switching regulator in order to make it work properly. The maximum output voltage of this regulator voltage is 5.5V. Despite external influences, voltage regulator consumes 10mA A of quiescent current. The high-limit maximum operating temperature 125°C allows harley voltage regulator stable operation. To ensure reliability, harley voltage regulator operates at a minimum operating temperature of -40°C. Input voltages as low as 2.7V can be used for DC DC switching regulator. It is designed to sustain a dc to dc voltage regulator's maximum 5.5V input voltage. There are 8 pins on this DC-DC switching regulator.
