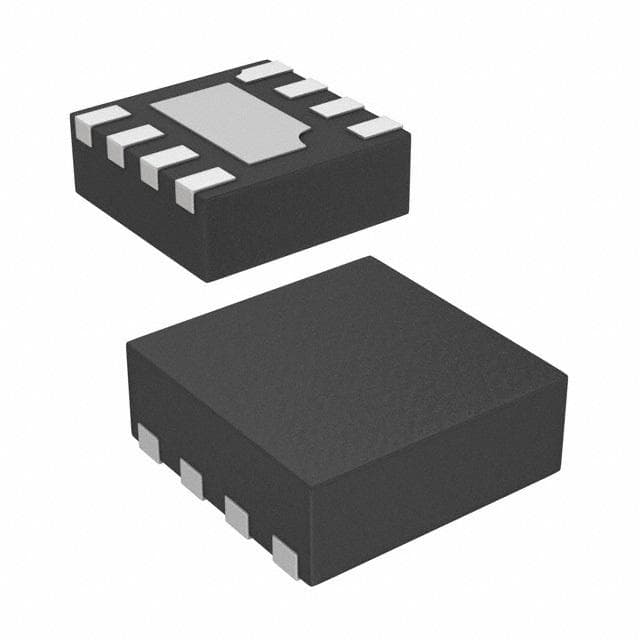

Renesas ISL8002AFRZ-T7A

Manufacturer No:

ISL8002AFRZ-T7A

Manufacturer:

Renesas

Package:

WFDFN

Description:

8 Terminals DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 2MHz Tape & Reel (TR) 2A WFDFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL8002AFRZ-T7A information

Renesas ISL8002AFRZ-T7A technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL8002AFRZ-T7A.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Surface Mount

Package / Case
WFDFN

Weight
50.008559mg

Packaging
Tape & Reel (TR)

Published
2003

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
Switching Regulator or Controllers

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
8

JESD-30 Code
S-PDSO-N8

Number of Outputs
1

Qualification Status
Not Qualified

Input Voltage-Nom
3.6V

Temperature Grade
AUTOMOTIVE

Min Supply Voltage
2.7V

Analog IC - Other Type
SWITCHING REGULATOR

Operating Supply Current
10mA

Output Configuration
Positive

Current - Output
2A

Quiescent Current
35μA

Max Output Voltage
5.5V

Voltage - Output
5.5V

Min Input Voltage
2.7V

Control Mode
CURRENT-MODE

Frequency - Switching
2MHz

Max Input Voltage
5.5V

Control Technique
PULSE WIDTH MODULATION

Synchronous Rectifier
Yes

Min Output Voltage
600mV

Switcher Configuration
BUCK

Length
2mm

Width
2mm

Height Seated (Max)
0.8mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL8002AFRZ-T7A.

ISL8002AFRZ-T7A Overview

This harley voltage regulator utilizes the Tape & Reel (TR) package for optimized performance. There are 8 terminations in this voltage regulator. The type of analog IC that this voltage regulator is equipped with is SWITCHING REGULATOR. This harley voltage regulator is available in the WFDFN package for the purpose of space saving. DC DC switching regulator is configured with 1 outputs. This DC DC switching regulator generates Adjustable output on its output pins. The switching frequency of this DC-DC switching regulator reaches 2MHz. The output current of 2A makes dc to dc voltage regulator feature maximum design flexibility. The peak reflow temperature of this regulator amounts to NOT SPECIFIED to be essentially indestructible. Voltage regulator is designed to provide a nominal input voltage of 3.6V to meet the operation requirements. This voltage regulator is included in the Switching Regulator or Controllers subcategory. The output voltage for this switching regulator should be kept at 600mV at least. It provides the adjusting voltage regulator's maximal output voltage of 5.5V. Voltage regulator consumes 35μA A of quiescent current without being affected by external factors. Adjusting voltage regulator reliable performance is ensured based on the minimal supply voltage of 2.7V V. The high-limit maximum operating temperature 125°C allows harley voltage regulator stable operation. It operates with the minimum operating temperature of -40°C to ensure harley voltage regulator's reliability. It supports a dc to dc voltage regulator's minimum input voltage of 2.7V. This DC-DC switching regulator is designed to sustain a 5.5V input voltage at its maxium. This DC-DC switching regulator is equipped with 8 pin count. This DC DC switching regulator operates from a supply current of 10mA. DC DC switching regulator has 5.5V voltage-output capability.
