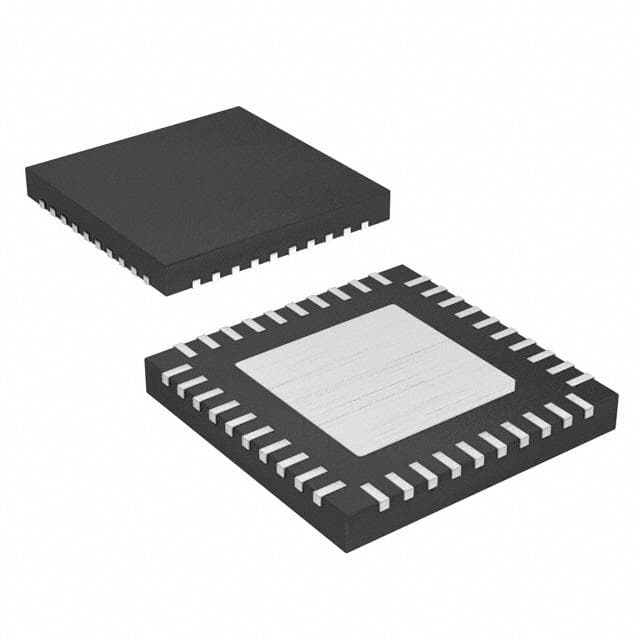

Renesas ISL98604IRTZ-T

Manufacturer No:

ISL98604IRTZ-T

Manufacturer:

Renesas

Package:

QFN

Description:

19V Specialized Voltage Regulator 40 Pins QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL98604IRTZ-T information

Renesas ISL98604IRTZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL98604IRTZ-T.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Number of Pins
40

Packaging
Tape & Reel (TR)

Published
2012

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.39.00.01

Pin Count
40

Number of Outputs
6

Operating Supply Voltage
16.5V

Voltage - Output
19V

Min Input Voltage
8V

Frequency - Switching
825kHz

Max Input Voltage
16.5V

Interface IC Type
LIQUID CRYSTAL DISPLAY DRIVER

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL98604IRTZ-T.

Datasheets:

intersil-isl98604irtzt-datasheets-5076.pdf

intersil-isl98604irtzt-datasheets-1787.pdf

ISL98604IRTZ-T Overview

As a whole, it supports 6 outputs. For ease of transportation, alternator regulator is packaged in QFN. The power regulator is ready for shipment in Tape & Reel (TR). There is a general voltage output of 19V from this power supply regulator. Assuming that the rectifier regulator has 40 pins, the pinout begins from there. In order to mount it on PCBs or other boards, it has a Surface Mount. The power regulators with 40 pins are available. It cannot be operated at a temperature below -40°C. The temperature should not exceed 85°C. For normal operation, a voltage of 16.5V is required. It is required that the input voltage be higher than 8V. Voltage regulators with 825kHzswitching frequencies are available. In order to interface with this regulator, LIQUID CRYSTAL DISPLAY DRIVER IC is used.
