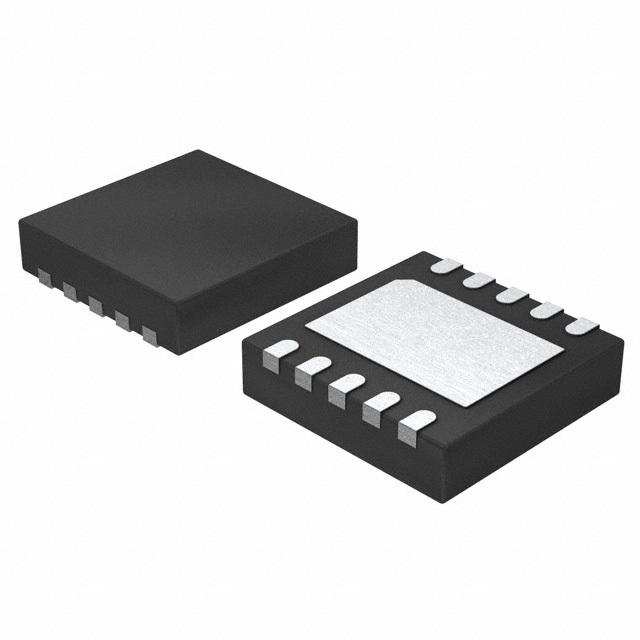

Renesas ISL78302ARCWZ

Manufacturer No:

ISL78302ARCWZ

Manufacturer:

Renesas

Package:

DFN

Description:

Fixed 0.5mm PMIC 10 DFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL78302ARCWZ information

Renesas ISL78302ARCWZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL78302ARCWZ.

Type
Parameter

Factory Lead Time
9 Weeks

Mount
Surface Mount

Package / Case
DFN

Number of Pins
10

Published
2002

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
10

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
105°C

Min Operating Temperature
-40°C

Subcategory
Other Regulators

Technology
CMOS

Terminal Position
DUAL

Terminal Pitch
0.5mm

Pin Count
10

Number of Outputs
1

Output Type
Fixed

Polarity
Positive

Current - Output
300mA

Quiescent Current
47μA

Accuracy
0.8 %

Output Voltage 1
1.8V

Number of Regulators
2

Min Input Voltage
2.3V

Max Input Voltage
6.5V

Dropout Voltage1-Nom
0.3V

Power Supply Rejection Ratio (PSRR)
64dB

Min Current Limit
320mA

Output Voltage 2
1.2V

Height
900μm

Length
3mm

Width
3mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL78302ARCWZ.

Datasheets:

intersil-isl78302arcwz-datasheets-0547.pdf

ISL78302ARCWZ Overview

There is a DFN case with the integrated voltage regulator. There are 10 terminations on the battery regulator IC chip and each of them has its own function. In terms of output type, Fixed is what the Regulator IC produces. The electronic component implements 2 Voltage regulator ICs. There is an 300mAmp current output on this voltage regulator IC. It has a total of 10 pins on IC voltage regulator. In order to ensure prompt, adequate, and prompt performance, this regulator has 1 outputs in total. There are 10 pins on the chip. In this instance, we are dealing with a typical Other Regulators-shaped component. It operates in the 47μA Quiescent Current state. Utilize the regulator IC when the temperature is below 105°C. It is recommended that the chip be operated at a temperature no lower than -40°C operating temperature. According to its specs, this IC voltage regulator generally outputs 1.2V volts.

ISL78302ARCWZ Features

Other Regulators subtageroy
The maximum operating temperature of -40°C

ISL78302ARCWZ Applications

There are a lot of Intersil (Renesas Electronics America)
ISL78302ARCWZ Linear Voltage Regulators applications.

Camera
Video equipment
CPU power supply
Switching regulator
Multiple-power supply system
Digital audio player
Digital TV
Smartcard
Industrial equipment
DVD and CD-ROM drive
