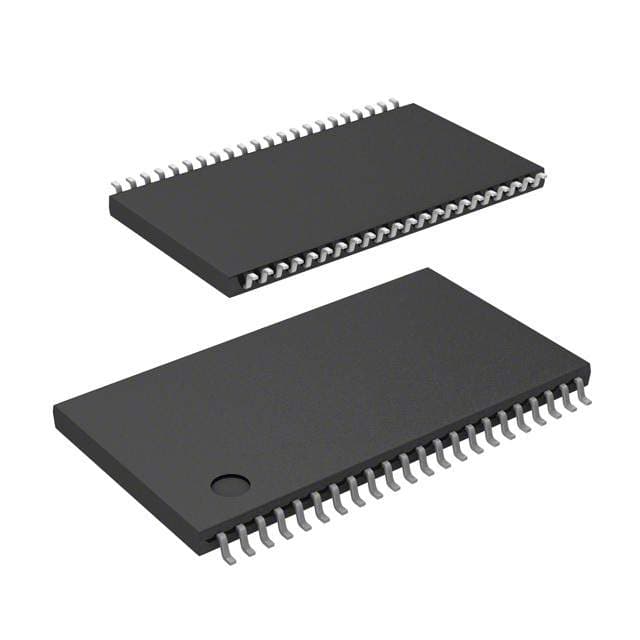

Renesas IDT71V416YL15PH
Renesas IDT71V416YL15PH

Renesas IDT71V416YL15PH

Manufacturer No:

IDT71V416YL15PH

Manufacturer:

Renesas

Package:

TSOP

Description:

3.3V V 44 Pin Memory IC 18.41mm mm

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT71V416YL15PH information

Renesas IDT71V416YL15PH technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT71V416YL15PH.

  • Type
  • Parameter
  • Package / Case
  • TSOP
  • Surface Mount
  • YES
  • Published
  • 2008
  • JESD-609 Code
  • e0
  • Pbfree Code
  • no
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 44
  • ECCN Code
  • 3A991.B.2.A
  • Terminal Finish
  • Tin/Lead (Sn85Pb15)
  • Max Operating Temperature
  • 70°C
  • Min Operating Temperature
  • 0°C
  • HTS Code
  • 8542.32.00.41
  • Subcategory
  • SRAMs
  • Technology
  • CMOS
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 225
  • Number of Functions
  • 1
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.8mm
  • Reach Compliance Code
  • not_compliant
  • Time@Peak Reflow Temperature-Max (s)
  • 20
  • Pin Count
  • 44
  • JESD-30 Code
  • R-PDSO-G44
  • Supply Voltage-Max (Vsup)
  • 3.6V
  • Power Supplies
  • 3.3V
  • Temperature Grade
  • COMMERCIAL
  • Supply Voltage-Min (Vsup)
  • 3V
  • Interface
  • Parallel
  • Memory Type
  • RAM, SRAM - Asynchronous
  • Supply Current-Max
  • 0.16mA
  • Organization
  • 256KX16
  • Output Characteristics
  • 3-STATE
  • Memory Width
  • 16
  • Standby Current-Max
  • 0.01A
  • Memory Density
  • 4194304 bit
  • Access Time (Max)
  • 15 ns
  • I/O Type
  • COMMON
  • Standby Voltage-Min
  • 3V
  • Length
  • 18.41mm
  • Height Seated (Max)
  • 1.2mm
  • Width
  • 10.16mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT71V416YL15PH.

Datasheets:

IDT71V416YL15PH Overview


As far as memory types are concerned, RAM, SRAM - Asynchronous is considered to be its memory type. In the case of TSOP, it is embedded within the case. On the chip, there are 44 terminations that are planted. The part supports at least 1 functions to ensure a comprehensive working process. In order to function properly, this ic memory chip should be powered by a voltage of 3.3V. I have noticed that the memory device has 44 pins, which indicates that it has 44 locations in the memory. There is only a single power supply required for this memory chip. There are I/O ports on this memory ics that have COMMON-bit memory mapping. Temperatures below 0°C should not be used with this memory ics. It is recommended that operation of the part be restricted to temperatures not exceeding 70°C, otherwise damage to the part may occur as a result of overheating. As far as the supply current is concerned, it can be operated with a maximum of 0.16mA of currentIn most cases, this memory ics is regarded as being a type of SRAMs.

IDT71V416YL15PH Features


Package / Case: TSOP
I/O Type: COMMON


IDT71V416YL15PH Applications


There are a lot of Integrated Device Technology (IDT)
IDT71V416YL15PH Memory applications.


  • servers
  • supercomputers
  • telecommunications
  • workstations,
  • DVD disk buffer
  • data buffer
  • nonvolatile BIOS memory
  • Camcorders
  • embedded logic
  • eDRAM
