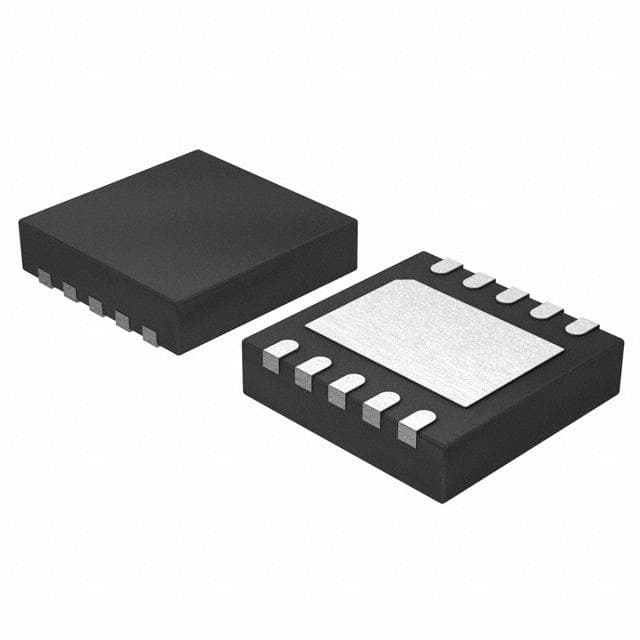

Renesas ISL78302ARBNZ

Manufacturer No:

ISL78302ARBNZ

Manufacturer:

Renesas

Package:

DFN

Description:

Fixed 0.5mm PMIC 10 DFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL78302ARBNZ information

Renesas ISL78302ARBNZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL78302ARBNZ.

Type
Parameter

Factory Lead Time
9 Weeks

Mount
Surface Mount

Package / Case
DFN

Number of Pins
10

Published
2002

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
10

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
105°C

Min Operating Temperature
-40°C

Subcategory
Other Regulators

Technology
CMOS

Terminal Position
DUAL

Terminal Pitch
0.5mm

Pin Count
10

Number of Outputs
1

Output Type
Fixed

Polarity
Positive

Current - Output
300mA

Quiescent Current
47μA

Accuracy
0.8 %

Output Voltage 1
3.3V

Number of Regulators
2

Min Input Voltage
2.3V

Max Input Voltage
6.5V

Dropout Voltage
300mV

Dropout Voltage1-Nom
0.3V

Power Supply Rejection Ratio (PSRR)
64dB

Min Current Limit
320mA

Output Voltage 2
1.5V

Height
900μm

Length
3mm

Width
3mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL78302ARBNZ.

ISL78302ARBNZ Overview

A DFN case contains the Liner IC. In total, there are 10 terminations on the gadget. This PMIC chip has an output type of Fixed. In this electrical part, there are 2 regulators that are implemented. The current output of this IC regulator is 300mA. There are 10 pins in total on this board. Featuring 1 outputs in total, this voltage regulator IC enables prompt, sufficient performance regardless of the application. There is a 10 volt dropout voltage on this transistor. A 10-pin is present on the chip. I would describe this component as a typical Other Regulators component. It operates in the 47μA Quiescent Current state. When the temperature is below 105°C, you are advised to use the voltage regulator IC. The chip's operating temperature cannot be lowered below -40°C. A system basis, this IC regulator can output 3.3V volts.

ISL78302ARBNZ Features

300mV dropout voltage
Other Regulators subtageroy
The maximum operating temperature of -40°C

ISL78302ARBNZ Applications

There are a lot of Intersil (Renesas Electronics America)
ISL78302ARBNZ Linear Voltage Regulators applications.

Portable telephone
Electronic notebook
Camera
Video equipment
CPU power supply
Switching regulator
Multiple-power supply system
Digital audio player
Digital TV
Smartcard
