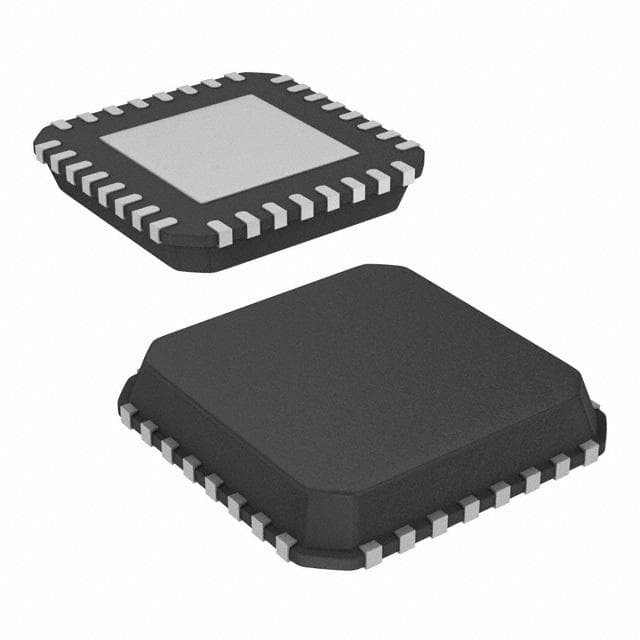

Renesas ISL6530CR

Manufacturer No:

ISL6530CR

Manufacturer:

Renesas

Package:

QFN

Description:

2.5V 240 Cel QUAD Specialized Voltage Regulator 32 Pins 32 Terminations QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6530CR information

Renesas ISL6530CR technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6530CR.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Published
2000

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Terminal Pitch
0.5mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
32

Number of Outputs
2

Qualification Status
Not Qualified

Input Voltage-Nom
5V

Temperature Grade
COMMERCIAL

Voltage - Output
2.5V

Input Voltage (Min)
4.5V

Control Mode
VOLTAGE-MODE

Input Voltage (Max)
5.5V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PUSH-PULL

Length
5mm

Height Seated (Max)
0.9mm

Width
5mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL6530CR.

Datasheets:

intersil-isl6530cr-datasheets-5186.pdf

intersil-isl6530cr-datasheets-4867.pdf

ISL6530CR Overview

There are 2 outputs supported by the voltage regulator. Transport is made easy with the package of QFN. Volatge output for this voltage controller is 2.5V. It contains terminals with the number 32. The part has received praise for being a DUAL SWITCHING CONTROLLER voltage regulator. Initially, the pinout of the alternator regulator begins with 32 pins. Surface Mount is there for mounting on a PCB or another board. The AC voltage regulator and other Switching Regulator or Controllers play an important role in the industry. It cannot be operated at temperatures below 0°C. In general, temperatures higher than 70°Care not recommended.

ISL6530CR Features

DUAL SWITCHING CONTROLLER analog IC

ISL6530CR Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6530CR Specialized Voltage Regulators applications.

DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
Cell Phones
Wireless Modems
PCS Phones
Two-Way Pagers
PHS Phones
