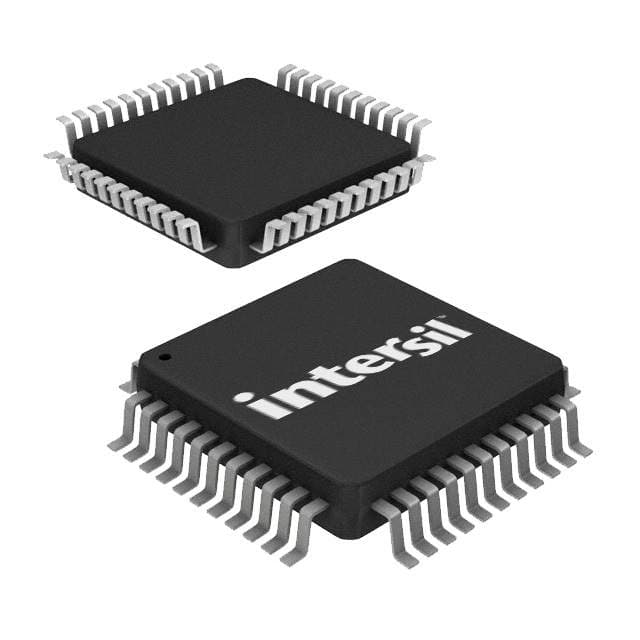

Renesas ISL78225ANEZ-T

Manufacturer No:

ISL78225ANEZ-T

Manufacturer:

Renesas

Package:

TQFP

Description:

44 Terminals 44-Pin DC to DC converter IC SWITCHING CONTROLLER 1 Outputs 1MHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL78225ANEZ-T information

Renesas ISL78225ANEZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL78225ANEZ-T.

Type
Parameter

Factory Lead Time
9 Weeks

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
44

Published
2003

Part Status
Active

Number of Terminations
44

ECCN Code
EAR99

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Terminal Pitch
0.8mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
44

Number of Outputs
1

Qualification Status
Not Qualified

Output Voltage
5V

Operating Supply Voltage
12V

Input Voltage-Nom
12V

Temperature Grade
AUTOMOTIVE

Frequency (Max)
1MHz

Input Voltage (Min)
5.6V

Control Mode
CURRENT-MODE

Frequency - Switching
1MHz

Input Voltage (Max)
40V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
BOOST

Max Duty Cycle
91.7 %

Duty Cycle (Max)
91.7 %

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL78225ANEZ-T.

Datasheets:

intersil-isl78225anezt-datasheets-9118.pdf

intersil-isl78225anezt-datasheets-8482.pdf

ISL78225ANEZ-T Overview

With its TQFP package, the switching controller fits the needs of most applications. For outputs of 1, this dc motor controller is suitable. In this switching controller, the switch can be set to 1MHz. SWITCHING CONTROLLER analog IC connects the switch converters. Switching converters are designed with the terminal (s) at position QUAD . The 44 terminations can be used for a wide range of dc switching. A few of the control techniques these dc dc converter ics adapt include PULSE WIDTH MODULATION. A DC switcher's nominal voltage of 12V is input. 44 pins are on switching converter. There is a particular type of Switching Regulator or Controllers in switching converter. Input voltage of dc dc voltage regulator should be 5.6V. Based on the test statistics, DC regulator outputs voltage 5V. It should be noted that the dc to dc regulator only accepts 40V voltage as input voltage. During power-up and power-down, the maximum duty cycle of the voltage regulator dc to dc is set to 91.7 %. In most applications and prototype designs, DC switcher is qualified as a Surface Mount. When running the voltage regulator dc to dc in a circuit, users should apply 12V to ensure safety and reliability. Temperatures should be kept at -40°C or higher. There should be 125°C more than 125°C degrees Celsius in the machine. Total number of functions (s) for thare switch converters are 1. There is a design for voltage regulators switching with 44 pins. Maximum frequency of the controller is 1MHz.
