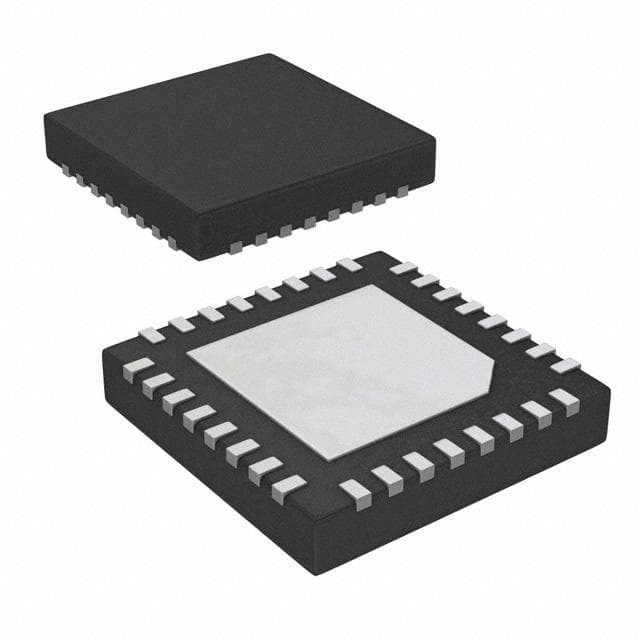

Renesas ISL6556BCR

Manufacturer No:

ISL6556BCR

Manufacturer:

Renesas

Package:

QFN

Description:

1.6V 240 Cel QUAD Specialized Voltage Regulator 32 Pins 32 Terminations QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6556BCR information

Renesas ISL6556BCR technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6556BCR.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Published
2002

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
32

JESD-30 Code
S-PQCC-N32

Number of Outputs
4

Qualification Status
Not Qualified

Input Voltage-Nom
5V

Temperature Grade
COMMERCIAL

Voltage - Output
1.6V

Control Mode
CURRENT-MODE

Input Voltage (Max)
5.25V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PHASE-SHIFT

Switching Frequency-Max
1500kHz

Length
5mm

Height Seated (Max)
1mm

Width
5mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL6556BCR.

Datasheets:

intersil-isl6556bcr-datasheets-7272.pdf

ISL6556BCR Overview

Currently, it supports a total of 4 outputs. The rectifier regulator is packaged in QFN in order to facilitate transportation. There is a general voltage output of 1.6Von this voltage controller. Electronic components have 32 terminals. As a SWITCHING CONTROLLER regulator, the electronic part has received high ratings. This alternator regulator has a pinout starting from 32 pins. A Surface Mount is provided for mounting it on PCBs and other boards. The AC voltage regulator is one example of how other Switching Regulator or Controllers play a critical role in the industry. A temperature lower than 0°Cis not suitable for the shunt regulator. There is no need to exceed 70°C in terms of temperature.

ISL6556BCR Features

SWITCHING CONTROLLER analog IC

ISL6556BCR Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6556BCR Specialized Voltage Regulators applications.

Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
Cell Phones
Wireless Modems
PCS Phones
