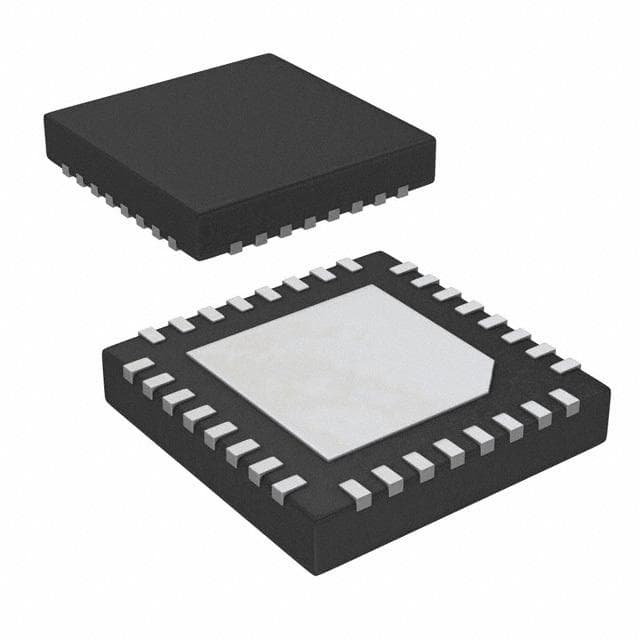

Renesas ISL6556ACRZ

Manufacturer No:

ISL6556ACRZ

Manufacturer:

Renesas

Package:

QFN EP

Description:

1.6V 260 Cel QUAD Specialized Voltage Regulator 32 Pins 32 Terminations QFN EP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6556ACRZ information

Renesas ISL6556ACRZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6556ACRZ.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN EP

Number of Pins
32

Published
2003

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
IT CAN ALSO OPERATE WITH CURRENT MODE

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
32

Number of Outputs
4

Operating Supply Voltage
5V

Input Voltage-Nom
5V

Analog IC - Other Type
SWITCHING CONTROLLER

Current - Output
120A

Voltage - Output
1.6V

Control Mode
VOLTAGE-MODE

Frequency - Switching
1.5MHz

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PHASE-SHIFT

Max Duty Cycle
66.7 %

Length
5mm

Height Seated (Max)
1mm

Width
5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL6556ACRZ.

Datasheets:

intersil-isl6556acrz-datasheets-6513.pdf

ISL6556ACRZ Overview

There are a total of 4 outputs supported by the voltage regulator. The rectifier regulator is packaged in QFN EP for ease of transportation. The general voltage output of this power supply regulator is 1.6V. It is possible to find 32terminals on the voltage regulator. This electronic part is highly regarded as a SWITCHING CONTROLLER regulator. The rectifier regulator's pinout begins with 32pins. A Surface Mount is provided for mounting on PCBs or other boards. There are 32 pins on the power regulator. The voltage controller, as well as other Switching Regulator or Controllers play a vital role in the industry. It is not suitable for temperatures below 0°C. It is not recommended to exceed 70°C in temperature. The operating supply voltage for normal operation should be 5V. Please refer to the followong extra aspects of this variable voltage regulator: IT CAN ALSO OPERATE WITH CURRENT MODE. The switching frequency of this AC voltage regulator is 1.5MHz.

ISL6556ACRZ Features

SWITCHING CONTROLLER analog IC
Supply voltage: 5V
Switching at 1.5MHz

ISL6556ACRZ Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6556ACRZ Specialized Voltage Regulators applications.

Notebook/Desktop/Server
Telecom/Datacom
GSM Base Station
LCD-TV/PDP-TV
Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
