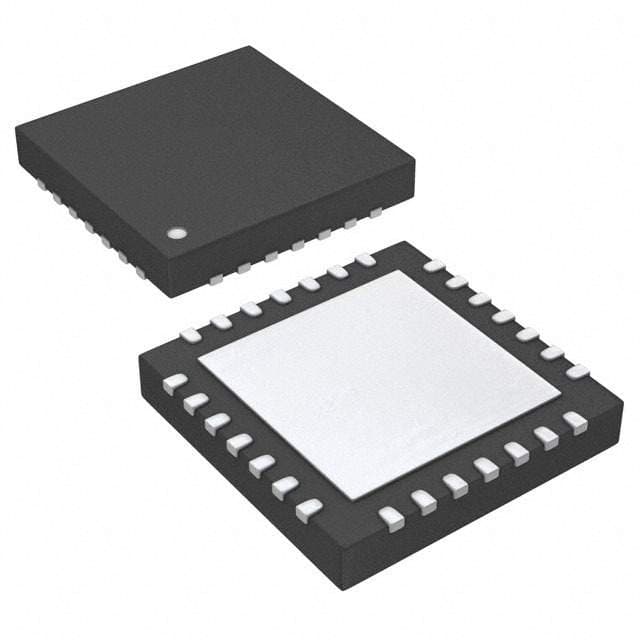

Renesas ISL6548CRZA

Manufacturer No:

ISL6548CRZA

Manufacturer:

Renesas

Package:

VQFN

Description:

28 Terminations 28 Pin Specialized Power Management ICs 1 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6548CRZA information

Renesas ISL6548CRZA technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6548CRZA.

Type
Parameter

Mount
Surface Mount

Package / Case
VQFN

Number of Pins
28

Published
2004

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

HTS Code
8542.39.00.01

Subcategory
Switching Regulator or Controllers

Technology
MOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
28

Qualification Status
Not Qualified

Input Voltage-Nom
5V

Analog IC - Other Type
DUAL SWITCHING CONTROLLER

Operating Supply Current
7mA

Input Voltage (Min)
4.5V

Control Mode
VOLTAGE-MODE

Output Current-Max
0.8A

Input Voltage (Max)
5.5V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PUSH-PULL

Length
6mm

Height Seated (Max)
1mm

Width
6mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL6548CRZA.

Datasheets:

intersil-isl6548crza-datasheets-0434.pdf

ISL6548CRZA Overview

packaged the power management in VQFN for ease of transportation, it is easy to transport.On the power management, there are two 28 terminals.It has received much praise because it is a DUAL SWITCHING CONTROLLER analog integrated circuit.28 pins are present on the power managment ic.Surface Mount can be mounted on PCBs or other boards.Its pinout begins at 28 pins.7mA is the voltage that this power management ic operates on.Switching Regulator or Controllers is the series that it belongs to.In general, temperatures higher than 70°C are not recommended.It cannot be used at a temperature below 0°C .

ISL6548CRZA Features

DUAL SWITCHING CONTROLLER analog IC

ISL6548CRZA Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6548CRZAPower Management applications.

Portable Systems
Hand-Held Systems
Space satellite point of load supply
Communications payload
Optical imaging payload
Desktop PC
Motherboard
Standard notebook PC
Chromebook
WOA
