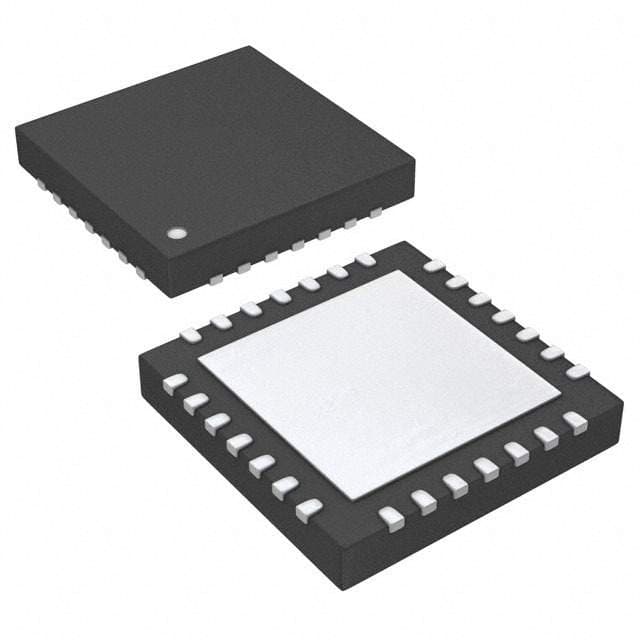

Renesas ISL6537CR
Renesas ISL6537CR

Renesas ISL6537CR

Manufacturer No:

ISL6537CR

Manufacturer:

Renesas

Package:

VQFN

Description:

28 Terminations Specialized Power Management ICs 1 Functions

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6537CR information

Renesas ISL6537CR technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6537CR.

  • Type
  • Parameter
  • Package / Case
  • VQFN
  • Mount
  • Surface Mount
  • Published
  • 2004
  • JESD-609 Code
  • e0
  • Part Status
  • Discontinued
  • Moisture Sensitivity Level (MSL)
  • 2 (1 Year)
  • Number of Terminations
  • 28
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Lead (Sn/Pb)
  • Max Operating Temperature
  • 70°C
  • Min Operating Temperature
  • 0°C
  • HTS Code
  • 8542.39.00.01
  • Subcategory
  • Switching Regulator or Controllers
  • Terminal Position
  • QUAD
  • Terminal Form
  • NO LEAD
  • Peak Reflow Temperature (Cel)
  • 240
  • Number of Functions
  • 1
  • Terminal Pitch
  • 0.65mm
  • Reach Compliance Code
  • not_compliant
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Pin Count
  • 28
  • JESD-30 Code
  • S-PQCC-N28
  • Qualification Status
  • Not Qualified
  • Input Voltage-Nom
  • 5V
  • Analog IC - Other Type
  • SWITCHING CONTROLLER
  • Operating Supply Current
  • 7mA
  • Input Voltage (Min)
  • 4.5V
  • Control Mode
  • VOLTAGE-MODE
  • Output Current-Max
  • 3.3A
  • Input Voltage (Max)
  • 5.5V
  • Control Technique
  • PULSE WIDTH MODULATION
  • Switcher Configuration
  • PUSH-PULL
  • Switching Frequency-Max
  • 280kHz
  • Width
  • 6mm
  • Height Seated (Max)
  • 1mm
  • Length
  • 6mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL6537CR.

Datasheets:

ISL6537CR Overview


To facilitate transportation, it is packaged the power management in VQFN .There are 28 terminals on the power management.The instruments designs is highly regarded as a SWITCHING CONTROLLER analog IC.A Surface Mount is provided for mounting on a PCB or other board.The power ic's pinout starts with 28 pins.It operates on a voltage of 7mA volts.The item belongs to the series Switching Regulator or Controllers .The temperature should not exceed 70°C .A temperature below 0°C is not suitable for the ic power supply.

ISL6537CR Features


SWITCHING CONTROLLER analog IC


ISL6537CR Applications


There are a lot of Intersil (Renesas Electronics America)
ISL6537CRPower Management applications.


  • SmartPhones
  • Portable Navigation Devices
  • Portable Media Players
  • Portable Systems
  • Hand-Held Systems
  • Space satellite point of load supply
  • Communications payload
  • Optical imaging payload
  • Desktop PC
  • Motherboard

User Guide
