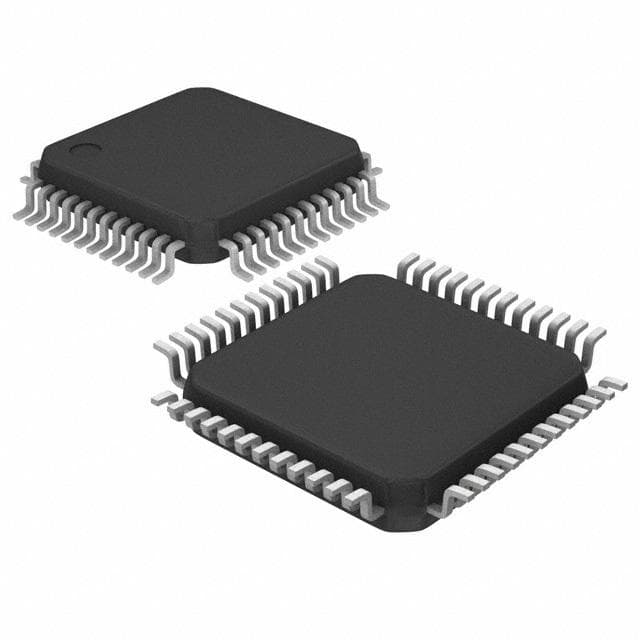

Renesas ISL6592DNZ-T

Manufacturer No:

ISL6592DNZ-T

Manufacturer:

Renesas

Package:

LQFP

Description:

0.5mm PMIC LQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6592DNZ-T information

Renesas ISL6592DNZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6592DNZ-T.

Type
Parameter

Mount
Surface Mount

Package / Case
LQFP

Published
2000

JESD-609 Code
e3

Number of Terminations
48

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
0°C

HTS Code
8542.39.00.01

Subcategory
Switching Regulator or Controllers

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
48

JESD-30 Code
S-PQFP-G48

Qualification Status
Not Qualified

Input Voltage-Nom
3.3V

Temperature Grade
OTHER

Analog IC - Other Type
SWITCHING CONTROLLER

Input Voltage (Min)
3V

Control Mode
VOLTAGE-MODE

Input Voltage (Max)
3.6V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PHASE-SHIFT

Switching Frequency-Max
1500kHz

Length
7mm

Height Seated (Max)
1.6mm

Width
7mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL6592DNZ-T.

Datasheets:

intersil-isl6592dnzt-datasheets-1803.pdf

ISL6592DNZ-T Overview

As a result, it is packed in the LQFP package. This device contains an analog integrated circuit SWITCHING CONTROLLER. There have been a total of 48 terminations for this system. It reaches its peak at 260. In total, 48 pins are present. As part of Switching Regulator or Controllers, this device is present. There is 100mA supply current supplied to it. Mounting is performed in accordance with the method of Surface Mount. A nominal input voltage of 3.3V is chosen to meet the operating requirements. Ensure that the device's input voltage is at least 3V. Temperatures less than 85°C are recommended for operation. Operating temperatures should be higher than 0°C. As far as switching frequency is concerned, the device can operate at maximum frequency at 1500kHz.

ISL6592DNZ-T Features

LQFP package
Switching Regulator or Controllers subcategory
Input voltage of 3.3V
Minimum temperature of 0°C

ISL6592DNZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6592DNZ-T Power Supply Control ICs applications.
