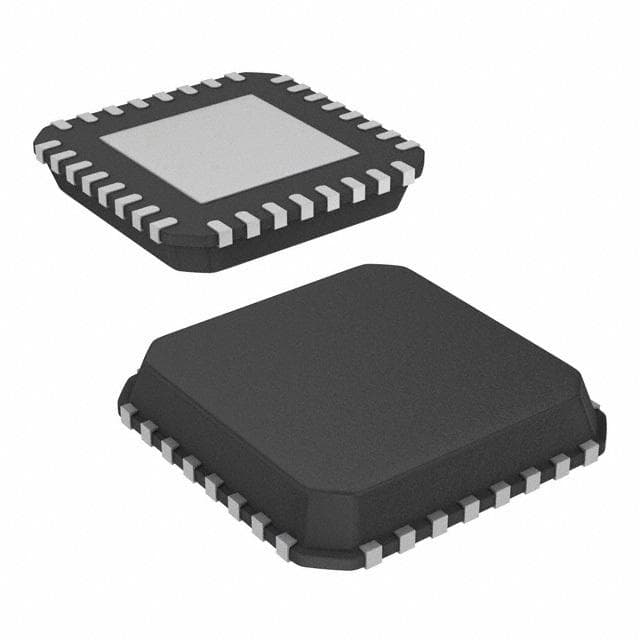

Renesas ISL6530CRZ-T

Manufacturer No:

ISL6530CRZ-T

Manufacturer:

Renesas

Package:

QFN

Description:

5V 260 Cel QUAD Specialized Voltage Regulator 32 Pins 32 Terminations QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6530CRZ-T information

Renesas ISL6530CRZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6530CRZ-T.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Number of Pins
32

Packaging
Tape & Reel

Published
2000

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
32

Number of Outputs
2

Operating Supply Voltage
5V

Input Voltage-Nom
5V

Analog IC - Other Type
DUAL SWITCHING CONTROLLER

Current - Output
2A

Quiescent Current
3mA

Voltage - Output
5V

Control Mode
VOLTAGE-MODE

Frequency - Switching
325kHz

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PUSH-PULL

Max Duty Cycle
100 %

Length
5mm

Height Seated (Max)
0.9mm

Width
5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL6530CRZ-T.

Datasheets:

intersil-isl6530crzt-datasheets-5634.pdf

intersil-isl6530crzt-datasheets-5056.pdf

ISL6530CRZ-T Overview

A total of 2outputs are supported by this voltage regulator. The rectifier regulator is packaged in QFN to facilitate transportation. We are ready to ship in Tape & Reel packages. An output voltage of 5V is provided by this power supply regulator. There are 32terminals on the voltage regulator. As a DUAL SWITCHING CONTROLLER regulator, the electronic part has received high praise. Pinouts for the rectifier regulator begin at 32. There is a Surface Mount on the board for mounting to a PCB or other board. 32pins are present on the power regulators. The voltage controller plays an important role in the industry, as do other Switching Regulator or Controllers. Temperatures below 0°Care not suitable for the shunt regulator. A temperature higher than 70°Cshould not be used. As a rule, 5V operating supply voltage is required for normal operation. In this alternator regulator, the quiescent current is 3mA. Voltage regulator with switching frequency 325kHz.

ISL6530CRZ-T Features

DUAL SWITCHING CONTROLLER analog IC
Supply voltage: 5V
Switching at 325kHz

ISL6530CRZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6530CRZ-T Specialized Voltage Regulators applications.

GSM Base Station
LCD-TV/PDP-TV
Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
Cell Phones
