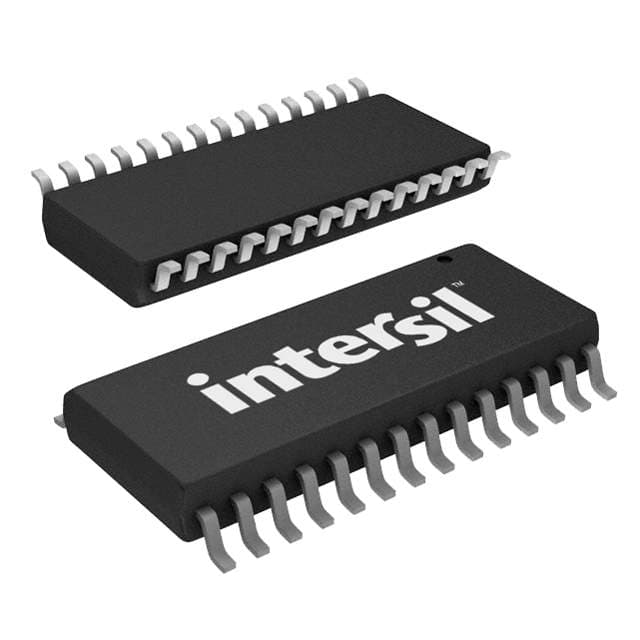

Renesas ISL6524ACBZ-T

Manufacturer No:

ISL6524ACBZ-T

Manufacturer:

Renesas

Package:

SOIC

Description:

1.8V 260 Cel DUAL Specialized Voltage Regulator 28 Pins 28 Terminations SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6524ACBZ-T information

Renesas ISL6524ACBZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6524ACBZ-T.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Packaging
Tape & Reel (TR)

Published
1999

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Switching Regulator or Controllers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
28

JESD-30 Code
R-PDSO-G28

Number of Outputs
4

Operating Supply Voltage
12V

Input Voltage-Nom
12V

Analog IC - Other Type
SWITCHING CONTROLLER

Current - Output
25A

Voltage - Output
1.8V

Input Voltage (Min)
10.8V

Control Mode
VOLTAGE-MODE

Frequency - Switching
215kHz

Input Voltage (Max)
13.2V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PUSH-PULL

Max Duty Cycle
100 %

Length
17.9mm

Height Seated (Max)
2.65mm

Width
7.5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL6524ACBZ-T.

Datasheets:

intersil-isl6524acbzt-datasheets-5475.pdf

intersil-isl6524acbzt-datasheets-7137.pdf

ISL6524ACBZ-T Overview

The voltage regulator supports a total of 4 outputs. The rectifier regulator is conveniently packaged in SOIC. Currently, the power regulator is available for shipping in Tape & Reel (TR) packages. 1.8Vis the general voltage output of this voltage controller. This electronic component contains terminals with a value of 28. The part has been well received as a SWITCHING CONTROLLER voltage regulator. Unless otherwise stated, the pinout of the alternator regulator begins with 28pins. This component has a Surface Mount mount for mounting to PCBs or other boards. The AC voltage regulator and other Switching Regulator or Controllers are crucial to the industry. A temperature below 0°C is not suitable for the shunt regulator. An increase in temperature over 70°C is not recommended. The normal operation of the system requires 12V operating voltage. A 215kHz switching frequency is available for this AC voltage regulator.

ISL6524ACBZ-T Features

SWITCHING CONTROLLER analog IC
Supply voltage: 12V
Switching at 215kHz

ISL6524ACBZ-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6524ACBZ-T Specialized Voltage Regulators applications.

PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
Cell Phones
Wireless Modems
PCS Phones
Two-Way Pagers
PHS Phones
Mobile Radios
