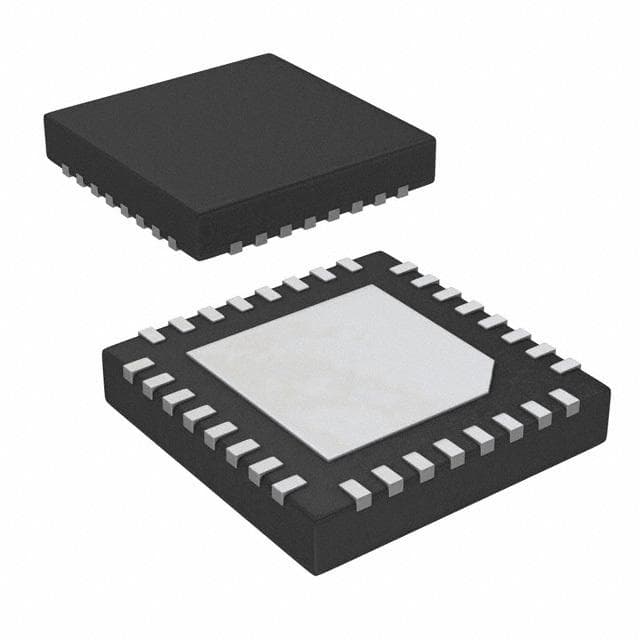

Renesas ISL6556BCRZ

Manufacturer No:

ISL6556BCRZ

Manufacturer:

Renesas

Package:

QFN EP

Description:

1.6V 260 Cel QUAD Specialized Voltage Regulator 32 Pins 32 Terminations QFN EP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6556BCRZ information

Renesas ISL6556BCRZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6556BCRZ.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN EP

Published
2001

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
32

JESD-30 Code
S-PQCC-N32

Number of Outputs
4

Operating Supply Voltage
5V

Input Voltage-Nom
5V

Temperature Grade
COMMERCIAL

Current - Output
120A

Voltage - Output
1.6V

Control Mode
CURRENT-MODE

Frequency - Switching
1.5MHz

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PHASE-SHIFT

Max Duty Cycle
66.7 %

Length
5mm

Height Seated (Max)
1mm

Width
5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL6556BCRZ.

Datasheets:

intersil-isl6556bcrz-datasheets-7477.pdf

ISL6556BCRZ Overview

The system supports a total of 4 outputs. In order to facilitate transportation, alternator regulator is packaged in QFN EP. The output voltage of this voltage controller is 1.6V. The voltage regulator has 32terminals. It has received a great deal of support as a SWITCHING CONTROLLER regulator. The pinout of the rectifier regulator begins with the pins it has at 32. Mounting on PCBs or other boards is easy with the Surface Mount. It is important to note that other Switching Regulator or Controllers in the industry, such as the voltage controller, also play a significant part. The product cannot be used at temperatures below 0°C. A temperature above 70°C is not recommended. It is necessary to have a voltage of 5V for normal operation. There is a 1.5MHzswitching frequency on this voltage regulator.

ISL6556BCRZ Features

SWITCHING CONTROLLER analog IC
Supply voltage: 5V
Switching at 1.5MHz

ISL6556BCRZ Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6556BCRZ Specialized Voltage Regulators applications.

LCD-TV/PDP-TV
Copier/Printer
Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
Cell Phones
Wireless Modems
