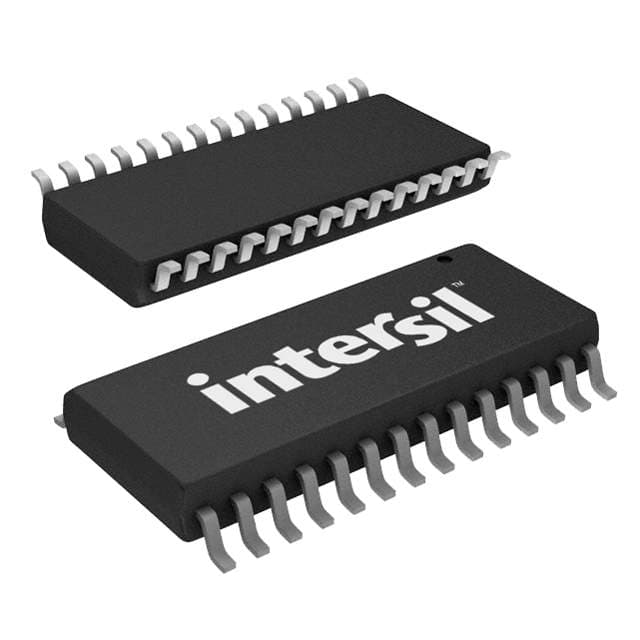

Renesas ISL6524ACBZ

Manufacturer No:

ISL6524ACBZ

Manufacturer:

Renesas

Package:

SOIC

Description:

1.8V 260 Cel DUAL Specialized Voltage Regulator 28 Pins 28 Terminations SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6524ACBZ information

Renesas ISL6524ACBZ technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6524ACBZ.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Published
1999

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Switching Regulator or Controllers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
28

JESD-30 Code
R-PDSO-G28

Number of Outputs
4

Qualification Status
Not Qualified

Operating Supply Voltage
12V

Input Voltage-Nom
12V

Analog IC - Other Type
SWITCHING CONTROLLER

Current - Output
25A

Voltage - Output
1.8V

Input Voltage (Min)
10.8V

Control Mode
VOLTAGE-MODE

Frequency - Switching
215kHz

Input Voltage (Max)
13.2V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PUSH-PULL

Max Duty Cycle
100 %

Length
17.9mm

Height Seated (Max)
2.65mm

Width
7.5mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ISL6524ACBZ.

Datasheets:

intersil-isl6524acbz-datasheets-5243.pdf

intersil-isl6524acbz-datasheets-7028.pdf

ISL6524ACBZ Overview

It supports 4 outputs in total. It is packaged in SOIC for convenient transportation. This power supply regulator has a general volatge output of 1.8V. You can find 28 terminals of the voltage regulator. As a SWITCHING CONTROLLER regulator, the electronic part has received lots of praise. The pinout of the rectifier regulator starts from 28 pins it has. It has a Surface Mount for mounting on PCB or other boards. Other Switching Regulator or Controllers like the voltage controller play a important role in the industry. Temperature lower than 0°C is not suitable for the it. Temperature higher than 70°C is not recommended. Normal operation requires 12V operating supply voltage. This AC voltage regulator comes in a 215kHz switching frequency.
