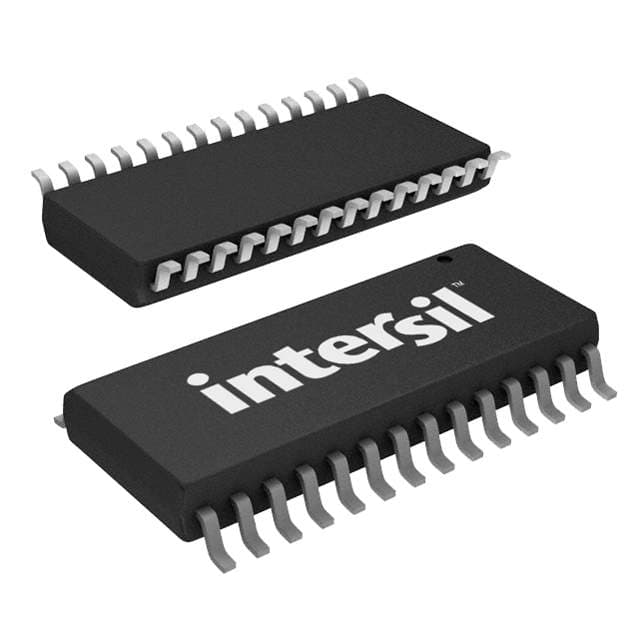

Renesas ISL6524ACB

Manufacturer No:

ISL6524ACB

Manufacturer:

Renesas

Package:

SOIC

Description:

240 Cel DUAL Specialized Voltage Regulator 28 Pins 28 Terminations SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL6524ACB information

Renesas ISL6524ACB technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL6524ACB.

Type
Parameter

Package / Case
SOIC

Mount
Surface Mount

Published
1999

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Switching Regulator or Controllers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Terminal Pitch
1.27mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
28

JESD-30 Code
R-PDSO-G28

Number of Outputs
4

Qualification Status
Not Qualified

Input Voltage-Nom
12V

Analog IC - Other Type
SWITCHING CONTROLLER

Input Voltage (Min)
10.8V

Control Mode
VOLTAGE-MODE

Input Voltage (Max)
13.2V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PUSH-PULL

Switching Frequency-Max
215kHz

Width
7.5mm

Height Seated (Max)
2.65mm

Length
17.9mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL6524ACB.

Datasheets:

intersil-isl6524acb-datasheets-4623.pdf

intersil-isl6524acb-datasheets-6780.pdf

ISL6524ACB Overview

Overall, it supports 4 outputs. To facilitate transportation, alternator regulator is packaged in SOIC. 28 terminals are present on the electronic component. It has received rave reviews as a SWITCHING CONTROLLER voltage regulator. Alternator regulator pinouts begin with 28 pins. The PCB or other board has a Surface Mount for mounting. There are other Switching Regulator or Controllers in the industry that play a crucial role, such as the AC voltage regulator. There is no need for it to be at a temperature lower than 0°C. Temperatures above 70°Cshould be avoided.

ISL6524ACB Features

SWITCHING CONTROLLER analog IC

ISL6524ACB Applications

There are a lot of Intersil (Renesas Electronics America)
ISL6524ACB Specialized Voltage Regulators applications.

Set-Top Box
DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
Cell Phones
Wireless Modems
PCS Phones
Two-Way Pagers
