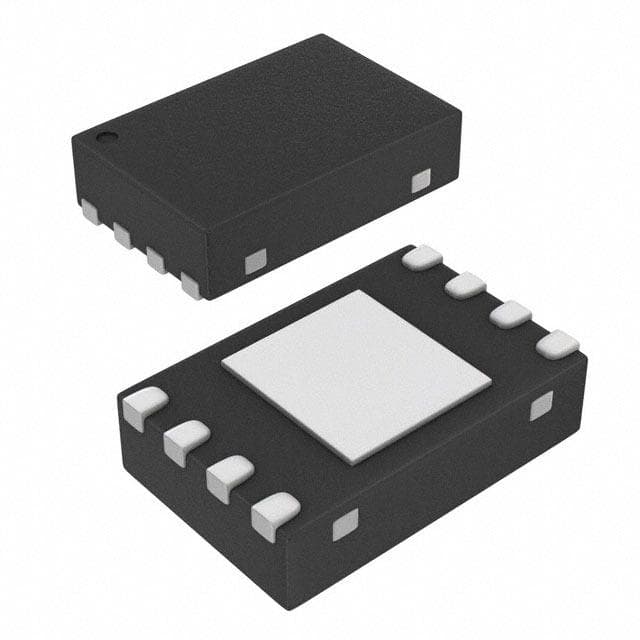

Renesas ISL43L120IR-T

Manufacturer No:

ISL43L120IR-T

Manufacturer:

Renesas

Package:

Description:

DUAL Analog Switches 8 Pins 1.8V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL43L120IR-T information

Renesas ISL43L120IR-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL43L120IR-T.

Type
Parameter

Mount
Surface Mount

Published
2001

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

Resistance
250mOhm

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Multiplexer or Switches

Technology
CMOS

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
240

Number of Functions
2

Supply Voltage
1.8V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Output
SEPARATE OUTPUT

Pin Count
8

JESD-30 Code
S-PDSO-N8

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.6V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
1.65V

Number of Channels
2

Analog IC - Other Type
SPDT

Operating Supply Current
30nA

Number of Bits
2

Throw Configuration
SPST

Supply Type
Single

Off-state Isolation-Nom
62 dB

On-state Resistance Match-Nom
0.005Ohm

Switch-on Time-Max
40ns

Switch-off Time-Max
35ns

Normal Position
NO

Length
3mm

Height Seated (Max)
0.8mm

Width
3mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas ISL43L120IR-T.

Datasheets:

intersil-isl43l120irt-datasheets-7476.pdf

ISL43L120IR-T Overview

Total terminations are 8. The electronic part provides high-quality output because it has 2 channels. Powered by a 1.8V voltage supply, the electrical part should be switched on and run. The electrical component body receives 8 pins. An switch multiplexer with 250mOhm internal resistance has a value of 250mOhm. The analogue multiplexer in this example is a typical Multiplexer or Switches. The analog switch ic is of the Single supply type and is cost-effective. An operating current of 30nA would be sufficient for this switch device. An analog IC with the number SPDT is integrated into this board. SEPARATE OUTPUT outputs are utilized by this digital multiplexer. Temperatures above 85°C degrees Celsius should not be operated by the multiplexer. It conducts in a 2-bit manner. Providing the analog switch ic with electricity requires a minimum voltage of 1.65V.

ISL43L120IR-T Features

2 Channels
30nA Supply Current
2-Bit

ISL43L120IR-T Applications

There are a lot of Intersil (Renesas Electronics America)
ISL43L120IR-T Analog Switches & Multiplexers ICs applications.

Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
