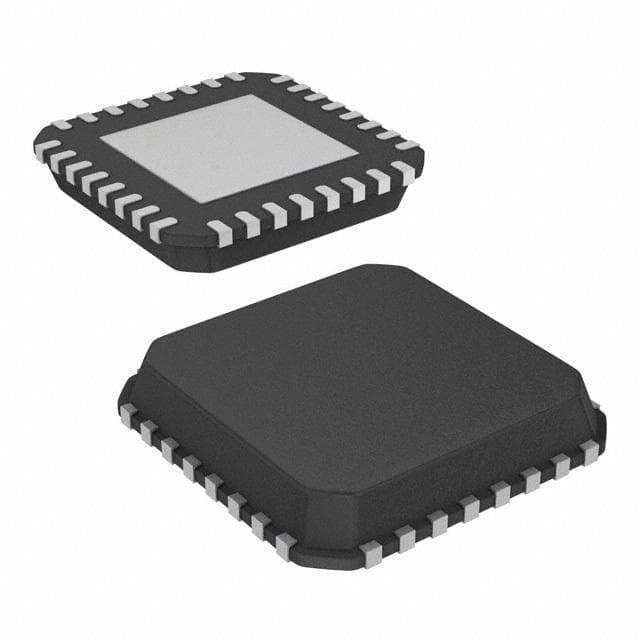

Renesas ISL62381CHRTZ-T

Manufacturer No:

ISL62381CHRTZ-T

Manufacturer:

Renesas

Package:

Description:

0.5mm PMIC 32 Pin

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL62381CHRTZ-T information

Renesas ISL62381CHRTZ-T technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL62381CHRTZ-T.

Type
Parameter

Mount
Surface Mount

Number of Pins
32

Published
2004

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
100°C

Min Operating Temperature
-10°C

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
32

Number of Outputs
2

Qualification Status
Not Qualified

Output Voltage
5V

Input Voltage-Nom
12V

Temperature Grade
OTHER

Operating Supply Current
150?A

Current - Output
100mA

Voltage - Output
5.5V

Control Mode
VOLTAGE-MODE

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PHASE-SHIFT

Switching Frequency-Max
600kHz

Length
5mm

Height Seated (Max)
0.8mm

Width
5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL62381CHRTZ-T.

Datasheets:

intersil-isl62381chrtzt-datasheets-7935.pdf

ISL62381CHRTZ-T Overview

It uses an analog integrated circuit DUAL SWITCHING CONTROLLER. There are 32 terminations in total. Reflow temperature peaks at NOT SPECIFIED. There are a total of 32 pins on it. Switching Regulator or Controllers contains this device. 32 pins are used in its design. The DC DC switching regulator is powered by a supply current of 150?A. The device is mounted in accordance with the method of Surface Mount. This device is designed to provide a nominal input voltage of 12V in order to meet the functional requirements. 5V is the constant output voltage. This device has 2 outputs. It is indicated that the operating temperature is less than 100°C. A temperature greater than -10°C should be used for operation. At maximum, the switching frequency of the device is 600kHz.
