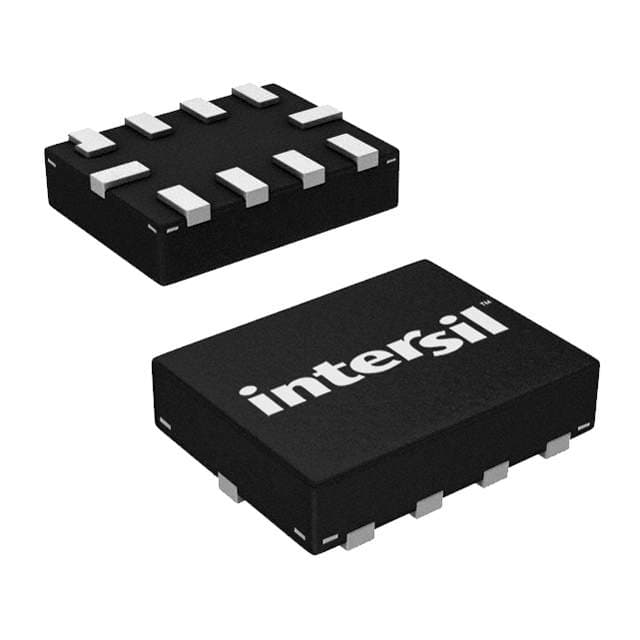

Renesas ISL59114IRUZ-T7

Manufacturer No:

ISL59114IRUZ-T7

Manufacturer:

Renesas

Package:

Description:

2 Channels 145mA per Channel Instrumentational OP Amps 3V 10 Pins

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL59114IRUZ-T7 information

Renesas ISL59114IRUZ-T7 technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL59114IRUZ-T7.

Type
Parameter

Mount
Surface Mount

Number of Pins
10

Packaging
Tape & Reel (TR)

Published
2001

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
10

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Other Consumer ICs

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
10

Qualification Status
Not Qualified

Operating Supply Voltage
3V

Temperature Grade
INDUSTRIAL

Number of Circuits
3

Max Supply Voltage
3.6V

Min Supply Voltage
2.5V

Operating Supply Current
3.1mA

Supply Current-Max
6mA

Slew Rate
40 V/μs

Output Current per Channel
145mA

Supply Type
Single

Bandwidth
8800 kHz

-3db Bandwidth
8.8MHz

Consumer IC Type
VIDEO AMPLIFIER

Height
550μm

Length
2.1mm

Width
1.6mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL59114IRUZ-T7.

Datasheets:

intersil-isl59114iruzt7-datasheets-9324.pdf

ISL59114IRUZ-T7 Overview

The case in which buffer amplifier is delivered is called a Tape & Reel (TR) case. It is estimated that there will be 10 terminations in the next few months. There are a total of 10 pins on this op amp. It should be noted that this op amp is a type of Other Consumer ICs device. There are 10 pins on this chip. An 3.1mA volt supply current is needed for this linear amplifier to operate. On this instrumentation amplifier, there are 3 circuits that are connected together. There are 2 channels on the operational amplifiers. In order for op amp to function properly, the temperature should not be lower than -40°C degrees Celsius. Instrumentation amplifier should only be used at temperatures up to 85°C. The operating supply voltage of the buffer op amp is rated at 3V. I would like to point out that this electrical component is capable of working from a voltage below 3.6V as far as the power supply is concerned. As a general rule, it is advisable to keep the op amp's supply voltage above 2.5V at all times. Sorting based on consumer IC type can be done by using VIDEO AMPLIFIER.
