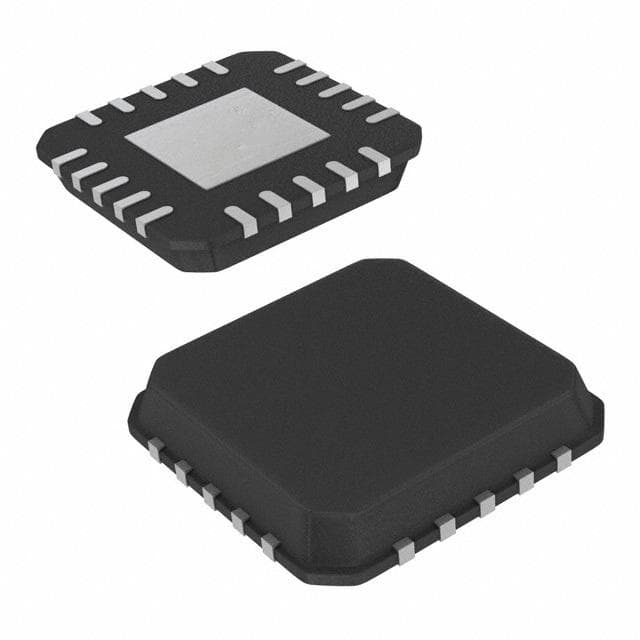

Renesas ISL22343TFR20Z-TK

Manufacturer No:

ISL22343TFR20Z-TK

Manufacturer:

Renesas

Package:

VQFN

Description:

20 Terminations 3.3V 20, 20 Pin Digital Potentiometers I2C 256 Positions Min 2.25V V Max 5.5V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL22343TFR20Z-TK information

Renesas ISL22343TFR20Z-TK technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL22343TFR20Z-TK.

Type
Parameter

Mount
Surface Mount

Package / Case
VQFN

Packaging
Tape & Reel

Published
2006

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
20

ECCN Code
EAR99

Temperature Coefficient
45 ppm/°C

Resistance
100kOhm

Number of Positions
256

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
Digital Potentiometers

Technology
CMOS

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
20, 20

Operating Supply Voltage
5V

Temperature Grade
AUTOMOTIVE

Interface
I2C

Number of Circuits
4

Max Supply Voltage
5.5V

Min Supply Voltage
2.25V

Nominal Supply Current
6?A

Memory Type
Non-Volatile

Converter Type
DIGITAL POTENTIOMETER

Bandwidth
0.12 kHz

Total Resistance
100000Ohm

Length
5mm

Height Seated (Max)
1mm

Width
5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL22343TFR20Z-TK.

Datasheets:

intersil-isl22343tfr20ztk-datasheets-8174.pdf

ISL22343TFR20Z-TK Overview

VQFN packages contain it.Non-Volatile marks the beginning of the storage process for this pentometer.The digital potentiometer has 4 embedded circuits.In the Tape & Reel package, it is accessible for securing the digital analogic.The number of positions is 256.There are 20 terminations on this digital potentiometer.You can refer to 1 functions in this programmable potentiometer.According to the diagram, the speed potentiometers's total resistance is 100000Ohm.Powered by 3.3V, it delivers its performance.In the digi devices, there are 20, 20 pins.A flow limit of 100kOhm can be applied.Mounted by Surface Mount.There is a DIGITAL POTENTIOMETER classification for its converter type.A supply voltage of 5V conducts the potentiometer.A maximum 125°C ensures that the digital resistor runs smoothly.In order to maintain reliability, it is operated at a minimum temperature of -40°C.This electronic component belongs to the family Digital Potentiometers.The maximum supply voltage it can handle is 5.5V.A electronic potentiometer minimum supply voltage of 2.25V can be used.
