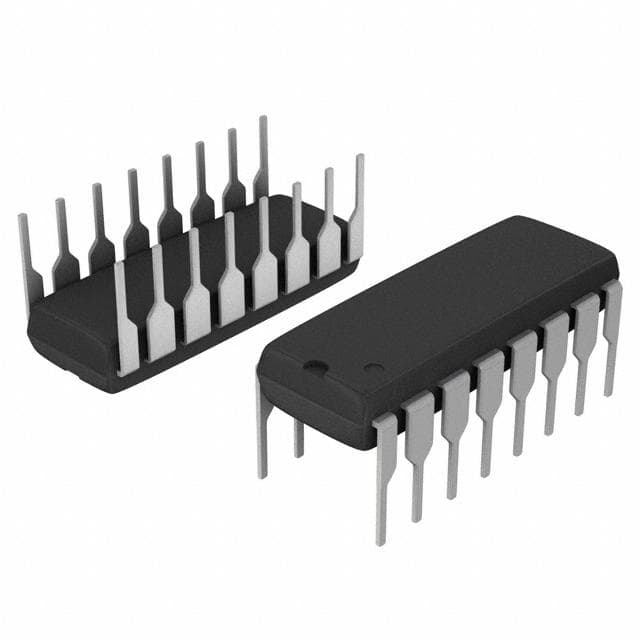

Renesas CA3280E

Manufacturer No:

CA3280E

Manufacturer:

Renesas

Package:

DIP

Description:

650μA per Channel 1.8μA 100 dB Instrumentational OP Amps 16 Pins DIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CA3280E information

Renesas CA3280E technical specifications, attributes, parameters and parts with similar specifications to Renesas CA3280E.

Type
Parameter

Mount
Through Hole

Package / Case
DIP

Published
1998

JESD-609 Code
e0

Part Status
Discontinued

Number of Terminations
16

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Operational Amplifier

Technology
BIPOLAR

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
2

Supply Voltage
15V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
16

Qualification Status
Not Qualified

Power Supplies
+-15V

Temperature Grade
COMMERCIAL

Number of Circuits
2

Operating Supply Current
2mA

Supply Current-Max
4.8mA

Architecture
TRANSCONDUCTANCE

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
100 dB

Current - Input Bias
1.8μA

Output Current per Channel
650μA

Input Offset Voltage (Vos)
700μV

Gain Bandwidth Product
9MHz

Neg Supply Voltage-Nom (Vsup)
-15V

Unity Gain BW-Nom
9000 kHz

Low-Offset
NO

Frequency Compensation
YES

Supply Voltage Limit-Max
18V

Bias Current-Max (IIB) @25C
5μA

Neg Supply Voltage-Max (Vsup)
-18V

Length
19.17mm

Height Seated (Max)
5.33mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas CA3280E.

CA3280E Overview

The linear amplifier is packaged in a DIP case. This is a OPERATIONAL AMPLIFIER type op amp. The number of terminations approaches 16. Buffer amplifier has a total of 16 pins. Please take in mind that this instrumentation amplifier should be run at 15V. To be specific, this instrumentation amplifier is a type of Operational Amplifier. Regarding input offset voltage, op amp rates 700μV. This op amp can operate from a supply current at 2mA. There are 2 circuits on this op amp. The temperature should not be lower than 0°C for operational amplifier ics to operate. Use op amps only at temperatures no higher than 70°C.

CA3280E Features

16 Pins
supply voltage of 15V

CA3280E Applications

There are a lot of Intersil (Renesas Electronics America)
CA3280E Instrumentational OP Amps applications.

Inverse/same-phase proportional circuit
Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
