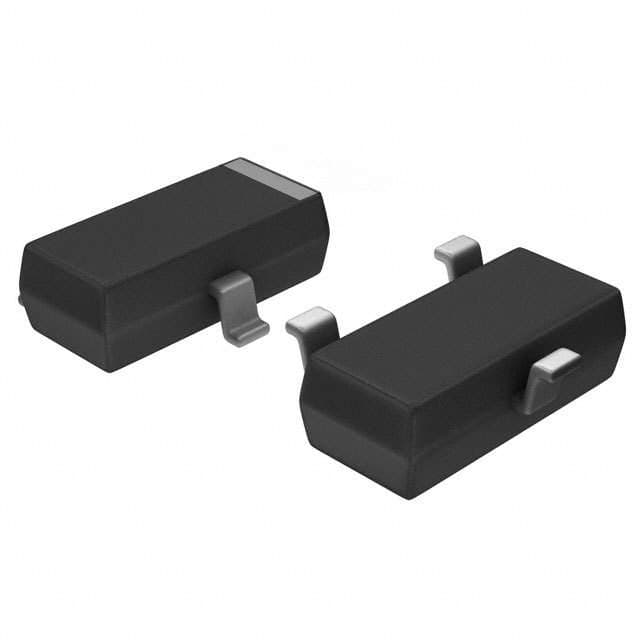

Renesas ISL21080CIH350Z-TK

Manufacturer No:

ISL21080CIH350Z-TK

Manufacturer:

Renesas

Package:

TO-236-3

Description:

Fixed 0.95mm PMIC 1 Channel 6.5V TO-236-3

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL21080CIH350Z-TK information

Renesas ISL21080CIH350Z-TK technical specifications, attributes, parameters and parts with similar specifications to Renesas ISL21080CIH350Z-TK.

Type
Parameter

Factory Lead Time
6 Weeks

Mount
Surface Mount

Package / Case
TO-236-3

Number of Pins
3

Packaging
Tape & Reel (TR)

Published
2004

Tolerance
0.2%

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

ECCN Code
EAR99

Temperature Coefficient
50 ppm/°C

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Voltage References

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
6.5V

Terminal Pitch
0.95mm

Number of Outputs
1

Output Voltage
5V

Output Type
Fixed

Max Output Current
7mA

Temperature Grade
INDUSTRIAL

Number of Channels
1

Trim/Adjustable Output
NO

Max Supply Voltage
8V

Analog IC - Other Type
THREE TERMINAL VOLTAGE REFERENCE

Operating Supply Current
1.5?A

Max Supply Current
1.5?A

Current - Output
7mA

Quiescent Current
1.5?A

Voltage - Output
5V

Max Input Voltage
10V

Reference Type
Series

Min Output Voltage
5V

Length
2.92mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ISL21080CIH350Z-TK.

Datasheets:

intersil-isl21080cih350ztk-datasheets-4087.pdf

intersil-isl21080cih350ztk-datasheets-3989.pdf

ISL21080CIH350Z-TK Overview

Uses the handy TO-236-3 package.This part serves as a voltage reference and is controlled by a Series signal.The external packaging contains Tape & Reel (TR).There are different types of functions that end with 3.In order to measure voltage accurately, a tolerance of 0.2% must be used.It is coupled to an analog IC THREE TERMINAL VOLTAGE REFERENCE.In order to determine the output voltage 5V, test statistics are used.There is 1 need to change the output to 1.Input can be entered via a Fixed form.The part includes pins 3.Reflow soldering shouldn't exceed 260.Part 3 has its pins 3 settled.Having a type of Voltage References, the reference voltage can be used for a wide variety of applications.It can be used by applications with 7mA inputs.There is Surface Mount suitable application for Surface Mount.It is impossible to expect the voltage reference ic to output more current than 7mA in this case.A high-quality communication channel is not available at the moment.In terms of voltage output, the lowest voltage is 5V.The maximum input voltage for this part is 10V, which means that voltage input should be limited accordingly.In order for it to work, you must supply a voltage of 6.5V.It should be operated at a temperature not exceeding 85°C.Temperatures as low as -40°C degrees Celsius are not an issue.It outputs voltage 5V.At idle, the part uses 1.5?A.A supply current of 1.5?A volts powers this voltage reference circuit.There may be damage to parts because of currents greater than 1.5?A.It is recommended that the maximum supply voltage (Vsup) of this voltage reference circuit does not exceed 8V volts.

ISL21080CIH350Z-TK Features

0.2% Tolerance
THREE TERMINAL VOLTAGE REFERENCE Analog IC
Peak Reflow Temperature: 260
Channel Number: 1
Max Output Voltage: 10V

ISL21080CIH350Z-TK Applications

There are a lot of Intersil (Renesas Electronics America)
ISL21080CIH350Z-TK Voltage Reference applications.

High resolution converters
Industrial process control systems
Precision instruments
Notebook Computers
Cell Phones
Industrial Process Control
High-Resolution Analog-to-Digital
and Digital-to-Analog Converters
High-Accuracy Reference Standard
High-Accuracy Industrial and Process Control
