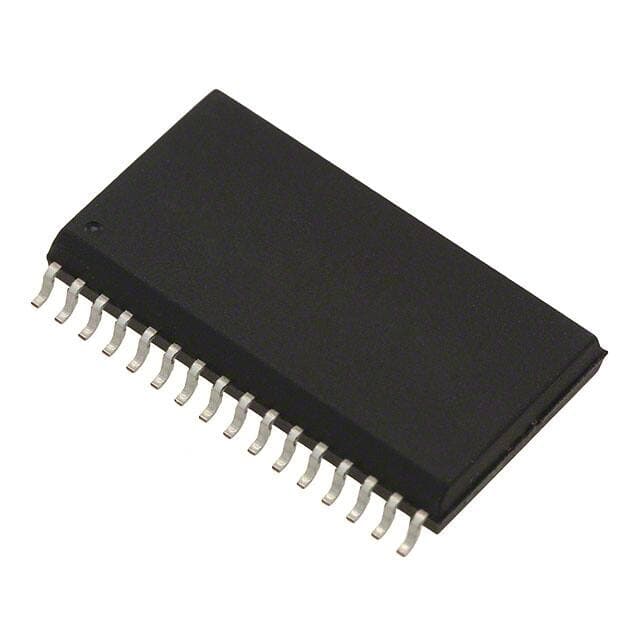

ISSI IS61C5128AS-25QLI

Manufacturer No:

IS61C5128AS-25QLI

Manufacturer:

ISSI

Package:

32-SOIC (0.445, 11.30mm Width)

Description:

5V V Surface Mount 32 Pin Memory IC 4 Mb kb 20.75mm mm 15mA mA 8b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IS61C5128AS-25QLI information

ISSI IS61C5128AS-25QLI technical specifications, attributes, parameters and parts with similar specifications to ISSI IS61C5128AS-25QLI.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
32-SOIC (0.445, 11.30mm Width)

Number of Pins
32

Operating Temperature
-40°C~85°C TA

Packaging
Tray

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

Terminal Finish
Matte Tin (Sn) - annealed

Technology
SRAM - Asynchronous

Voltage - Supply
4.5V~5.5V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
32

Operating Supply Voltage
5V

Power Supplies
5V

Memory Size
4Mb 512K x 8

Nominal Supply Current
15mA

Memory Type
Volatile

Memory Format
SRAM

Memory Interface
Parallel

Output Characteristics
3-STATE

Write Cycle Time - Word, Page
25ns

Address Bus Width
19b

Density
4 Mb

Standby Current-Max
0.0009A

Access Time (Max)
25 ns

I/O Type
COMMON

Sync/Async
Asynchronous

Word Size
8b

Standby Voltage-Min
2.9V

Height
2.75mm

Length
20.75mm

Width
11.43mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ISSI IS61C5128AS-25QLI.

IS61C5128AS-25QLI Overview

Volatile is its memory type. It is available in a case with a Tray shape. As you can see, it is embedded in 32-SOIC (0.445, 11.30mm Width) case. There is an 4Mb 512K x 8 memory capacity on the chip. In this device, the memory is of the SRAM-format, which is a popular format in the mainstream computing sector. Due to its extended operating temperature range, the device is well suited for a wide range of demanding applications. A voltage of 4.5V~5.5V is possible to be applied to the supply. There is a recommendation that Surface Mount mounting type should be used for this product. As you can see from the diagram, the chip is planted with 32 terminations. In total, 1 functions are supported by this part. The memory device designed for this application has been designed to be powered by an 5V power supply. It is encased in an 32-pin package that contains this ic memory chip. It has 32 pins indicating it has 32 memory locations. It is noted that the operating supply voltage of this memory is 5V. Chips such as this one are mounted using Surface Mount mounting, a straightforward method of mounting that is effective. Memory chip's nominal supply current is 15mA. An address can be read and/or written to one memory address using 1 ports on the chip. This memory chip requires a mere 5V of power. In addition to this device, there are COMMON-bit memory mapped I/O port addresses on this device.

IS61C5128AS-25QLI Features

Package / Case: 32-SOIC (0.445, 11.30mm Width)
32 Pins
Operating Supply Voltage:5V
I/O Type: COMMON

IS61C5128AS-25QLI Applications

There are a lot of ISSI, Integrated Silicon Solution Inc
IS61C5128AS-25QLI Memory applications.

telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
hard disk drive (HDD)
