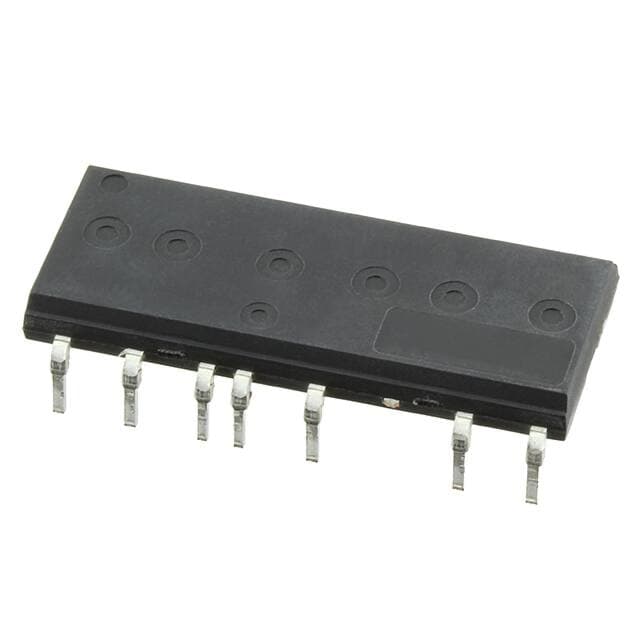

INFINEON IRSM515-035DA
Manufacturer No:
IRSM515-035DA
Manufacturer:
Package:
23-DIP Module
Description:
Tube 23-DIP Module Logic 13.5V~16.5V Through Hole -40°C~150°C TJ AC Motors Half Bridge (3) Inductive 400V Max
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
IRSM515-035DA information
INFINEON IRSM515-035DA technical specifications, attributes, parameters and parts with similar specifications to INFINEON IRSM515-035DA.
- Type
- Parameter
- Factory Lead Time
- 21 Weeks
- Mounting Type
- Through Hole
- Package / Case
- 23-DIP Module
- Operating Temperature
- -40°C~150°C TJ
- Packaging
- Tube
- Series
- µIPM?-DIP
- Published
- 2014
- Feature
- Bootstrap Circuit
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Applications
- AC Motors
- HTS Code
- 8542.39.00.01
- Technology
- UMOS
- Voltage - Supply
- 13.5V~16.5V
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Interface
- Logic
- Analog IC - Other Type
- AC MOTOR CONTROLLER
- Output Configuration
- Half Bridge (3)
- Voltage - Load
- 400V Max
- Current - Output / Channel
- 2.1A
- Fault Protection
- UVLO
- Rds On (Typ)
- 1.8 ?
- Current - Peak Output
- 15A
- RoHS Status
- RoHS Compliant
