ADI ADG1211YCPZ-500RL7

Manufacturer No:

ADG1211YCPZ-500RL7

Manufacturer:

ADI

Package:

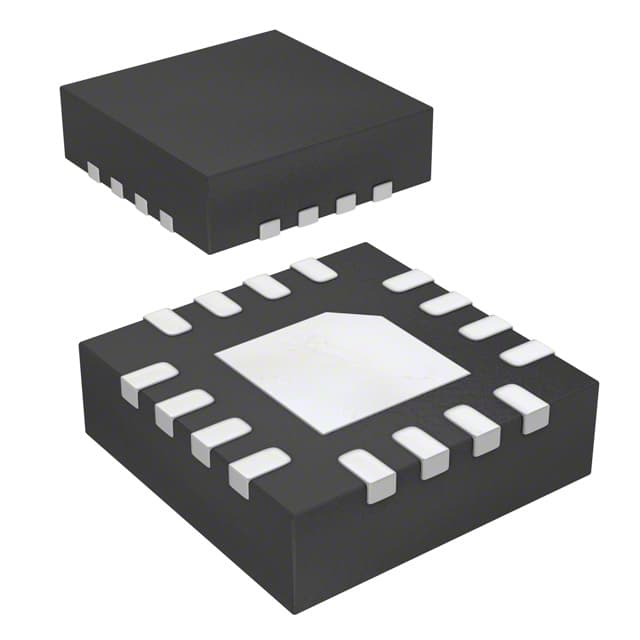

16-WFQFN Exposed Pad, CSP

Description:

130ns, 115ns SPST - NC 190Ohm QUAD Analog Switches BREAK-BEFORE-MAKE ADG1211 16 Pins 100pA 15V 16-WFQFN Exposed Pad, CSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADG1211YCPZ-500RL7 information

ADI ADG1211YCPZ-500RL7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADG1211YCPZ-500RL7.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 1 month ago)

Factory Lead Time
8 Weeks

Mounting Type
Surface Mount

Package / Case
16-WFQFN Exposed Pad, CSP

Surface Mount
YES

Number of Pins
16

Operating Temperature
-40°C~125°C TA

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
16

ECCN Code
EAR99

Resistance
475Ohm

Terminal Finish
Matte Tin (Sn)

Subcategory
Multiplexer or Switches

Max Power Dissipation
150?W

Technology
CMOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
4

Supply Voltage
15V

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
ADG1211

Output
SEPARATE OUTPUT

Pin Count
16

Qualification Status
Not Qualified

Operating Supply Voltage
12V

Number of Channels
1

Interface
Parallel

Number of Circuits
1

Max Supply Voltage
16.5V

Min Supply Voltage
5V

Test Frequency
1MHz

Operating Supply Current
220?A

Power Dissipation
150?W

Max Supply Current
380?A

Throw Configuration
SPST

Turn On Delay Time
130 ns

Number of Inputs
4

Voltage - Supply, Single/Dual (±)
5V~16.5V ±4.5V~16.5V

Supply Type
Dual, Single

Bandwidth
700MHz

Neg Supply Voltage-Nom (Vsup)
-15V

Turn-Off Delay Time
115 ns

Download datasheets and manufacturer documentation for ADI ADG1211YCPZ-500RL7.

ADG1211YCPZ-500RL7 Overview

The electrical component comes in 16-WFQFN Exposed Pad, CSP packaging, which makes it convenient to ship overseas. To ensure high reliability, a new packaging method Tape & Reel (TR) is used. In Surface Mount, you'll find this switch device. In the multiplexer and demultiplexer, 1:1 represents the number of circuits. Operating temperature around -40°C~125°C TA extended. In total, 16 terminations have occurred. A electrical component with 1 channels is capable of high-quality output. When the electronic component is given a voltage of 15V, it should be turned on and run. Into the electrical component body are injected 16 pins. On the other hand, analog switches can be constructed using SPST - NC switching circuits. Circuits number 1 make up this analogue multiplexer. Look for analog switch ic variants by searching with ADG1211. A 475Ohm internal resistance characterizes this multiplexer. The datasheets for the 16 pins explain the functions. The analog multiplexer shown here is a typical Multiplexer or Switches. An abnormal situation would be for the switch device to be supplied with a voltage greater than 16.5V. A analog switch ic that has a cost-effective Dual, Single supply type. It is recommended to use 5V as the lowest voltage for the electrical part. The analogue multiplexer could operate on 220?A current. A voltage higher than 380?A may cause damage to the switch multiplexer. For this switch, a dual supply voltage is feasible, but it must not exceed 16.5VFor dual power supplies, a voltage of at least 4.5V should be attached. It is possible to use SEPARATE OUTPUT outputs on this digital multiplexer. This electrical part is compatible with 12V operating voltages. Among the inputs that can be operated are the 4 inputs. It is possible to transfer data over a 700MHz-bandwidth.

ADG1211YCPZ-500RL7 Features

1 Channels
Switch Circuit: SPST - NC
220?A Supply Current
-3db Bandwidth: 1GHz
Bandwidth: 700MHz

ADG1211YCPZ-500RL7 Applications

There are a lot of Analog Devices Inc.
ADG1211YCPZ-500RL7 Analog Switches & Multiplexers ICs applications.

Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
Battery Powered Systems
Existing multiplexer applications (both fault-protected and nonfault-protected)
