INFINEON IR3447MTRPBF
Manufacturer No:
IR3447MTRPBF
Manufacturer:
Package:

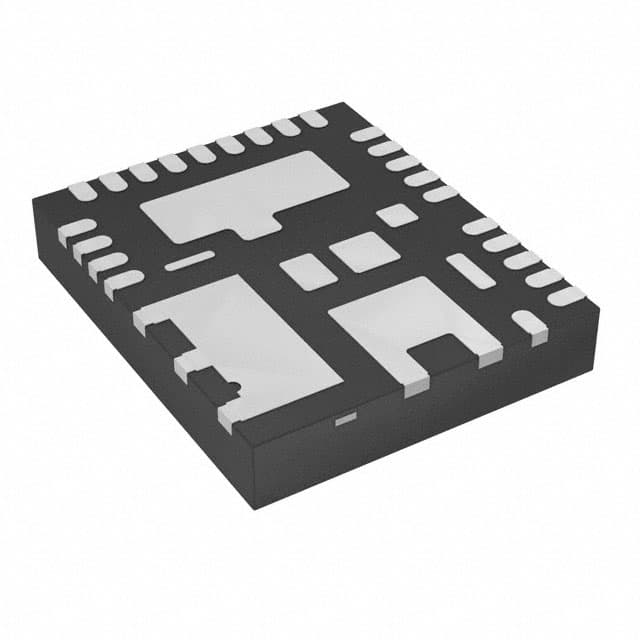

33-PowerVQFN
Description:
33 Terminals 5V 33-Pin DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 300kHz~1.5MHz Tape & Reel (TR) 33-PowerVQFN
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
IR3447MTRPBF information
INFINEON IR3447MTRPBF technical specifications, attributes, parameters and parts with similar specifications to INFINEON IR3447MTRPBF.
- Type
- Parameter
- Factory Lead Time
- 25 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 33-PowerVQFN
- Number of Pins
- 33
- Operating Temperature
- -40°C~125°C TJ
- Packaging
- Tape & Reel (TR)
- Series
- SupIRBuck®
- Published
- 2002
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 2 (1 Year)
- Number of Terminations
- 33
- ECCN Code
- EAR99
- Terminal Position
- UNSPECIFIED
- Function
- Step-Down
- Number of Outputs
- 1
- Output Voltage
- 18.06V
- Output Type
- Adjustable
- Max Output Current
- 25A
- Operating Supply Voltage
- 21V
- Voltage - Input (Min)
- 5V
- Input Voltage-Nom
- 7V
- Analog IC - Other Type
- SWITCHING REGULATOR
- Output Configuration
- Positive
- Voltage - Output (Min/Fixed)
- 0.6V
- Topology
- Buck
- Control Mode
- VOLTAGE-MODE
- Frequency - Switching
- 300kHz~1.5MHz
- Control Technique
- PULSE WIDTH MODULATION
- Synchronous Rectifier
- Yes
- Min Output Voltage
- 600mV
- Length
- 6mm
- Width
- 5mm
- REACH SVHC
- No SVHC
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for INFINEON IR3447MTRPBF.
Datasheets:
Other Related Documents:
ConflictMineralStatement:
Product Description:
The IR3447MTRPBF is a high-performance, surface-mount, switching regulator from Infineon Technologies, part of the SupIRBuck? series. This voltage-mode, pulse-width modulation (PWM) controlled device operates in the buck topology, providing a highly efficient and compact solution for a wide range of applications.
Features:
- High output current: up to 25A
- Adjustable output voltage: 0.6V to 18.06V
- Wide input voltage range: 5V to 21V
- High switching frequency: 300kHz to 1.5MHz
- Synchronous rectification for improved efficiency
- Compact 33-PowerVQFN package with a small footprint of 6mm x 5mm
- Surface-mount packaging for easy integration
- Operating temperature range: -40°C to 125°C
Applications:
- Power supplies for industrial and automotive applications
- Server and data center power supplies
- Telecom and networking equipment
- Medical and healthcare devices
- Aerospace and defense systems
Alternative Parts:
- IR3446MTRPBF: similar device with a lower output current (15A)
- IR3448MTRPBF: similar device with a higher output current (30A)
- IR3449MTRPBF: similar device with a higher output voltage (24V)
Embedded Modules:
- Infineon's XMC series of microcontrollers
- Infineon's AURIX series of microcontrollers
- Infineon's OPTIGA series of security modules
FAQs:
Q: What is the maximum output current of the IR3447MTRPBF? A: The maximum output current is 25A.
Q: What is the minimum output voltage of the IR3447MTRPBF? A: The minimum output voltage is 0.6V.
Q: What is the operating temperature range of the IR3447MTRPBF? A: The operating temperature range is -40°C to 125°C.
Q: Is the IR3447MTRPBF RoHS compliant? A: Yes, the IR3447MTRPBF is RoHS3 compliant.
Q: What is the packaging type of the IR3447MTRPBF? A: The packaging type is Tape & Reel (TR).
