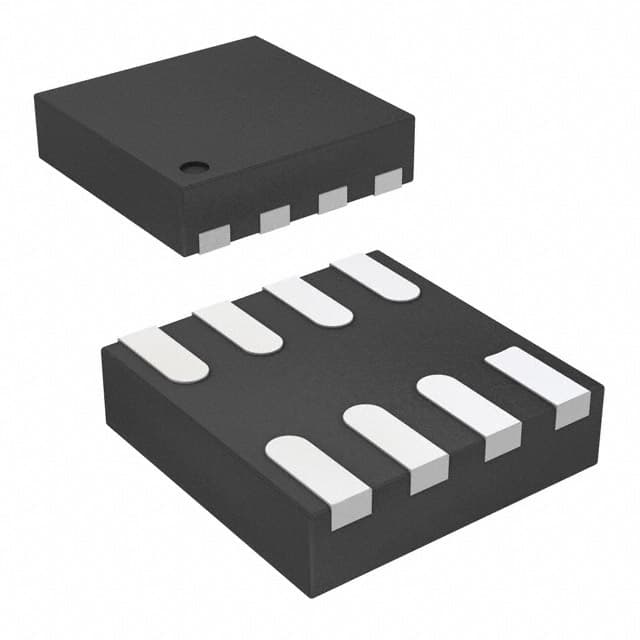

ADI ADA4075-2ACPZ-R7
Manufacturer No:
ADA4075-2ACPZ-R7
Manufacturer:
Package:
8-UFDFN, CSP
Description:
2 Channels 40mA per Channel 30nA 116 dB Instrumentational OP Amps 0.15μA ±4.5V~18V ADA4075 8 Pins 8-UFDFN, CSP
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ADA4075-2ACPZ-R7 information
ADI ADA4075-2ACPZ-R7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADA4075-2ACPZ-R7.
- Type
- Parameter
- Lifecycle Status
- PRODUCTION (Last Updated: 3 months ago)
- Factory Lead Time
- 8 Weeks
- Contact Plating
- Gold
- Mounting Type
- Surface Mount
- Package / Case
- 8-UFDFN, CSP
- Surface Mount
- YES
- Number of Pins
- 8
- Operating Temperature
- -40°C~125°C
- Packaging
- Tape & Reel (TR)
- Series
- iPolar®
- JESD-609 Code
- e4
- Pbfree Code
- no
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 8
- ECCN Code
- EAR99
- Subcategory
- Operational Amplifier
- Technology
- BIPOLAR
- Terminal Position
- DUAL
- Peak Reflow Temperature (Cel)
- 225
- Number of Functions
- 2
- Supply Voltage
- 15V
- Terminal Pitch
- 0.5mm
- Base Part Number
- ADA4075
- Number of Channels
- 2
- Operating Supply Current
- 3.6mA
- Quiescent Current
- 1.8mA
- Slew Rate
- 12V/μs
- Amplifier Type
- General Purpose
- Common Mode Rejection Ratio
- 116 dB
- Current - Input Bias
- 30nA
- Voltage - Supply, Single/Dual (±)
- ±4.5V~18V
- Output Current per Channel
- 40mA
- Input Offset Voltage (Vos)
- 1mV
- Bandwidth
- 6.5MHz
- Neg Supply Voltage-Nom (Vsup)
- -15V
- Unity Gain BW-Nom
- 6500 kHz
- Voltage Gain
- 117dB
- Average Bias Current-Max (IIB)
- 0.15μA
- Power Supply Rejection Ratio (PSRR)
- 104dB
- Voltage - Input Offset
- 300μV
- Settling Time
- 3 μs
- Max Frequency
- 1kHz
- Dual Supply Voltage
- 18V
- Input Capacitance
- 2.1pF
- Input Voltage Noise Density
- 2.8nV/sqrt Hz
- Height
- 600μm
Download datasheets and manufacturer documentation for ADI ADA4075-2ACPZ-R7.
Datasheets:
ConflictMineralStatement:
ADA4075-2ACPZ-R7 Overview
It is packaged in an 8-UFDFN, CSP-case that protects the operational amplifiers from damage. An op amp of this type is a General Purpose-type. As far as the packaging is concerned, buffer op amp is delivered in a Tape & Reel (TR) case. It is estimated that there will be at least 8 terminations this year. A total of 8 pins are attached to buffer op amp. As a reminder, this buffer op amp should be powered by 15V battery and that the battery should be inserted in the amplifier. A type of Operational Amplifier op amp ic can be identified by the fact that this is a type of Operational Amplifier device. In total, the buffer amplifier consists of 8 pins. Op amp ic rates 1mV for input offset voltage. This electronic part is recommended for mounting type Surface Mount. In terms of operating temperature, this instrumentation amplifier is well suited to a temperature range of -40°C~125°C. A supply current of 3.6mA can be used to operate this linear amplifier. There should be no change in the voltage gain at 117dB. There are a total of 2 channels available on the op amps. Buffer op amp series numbers are indicated by the iPolar®. The quiescent current is 1.8mA.
ADA4075-2ACPZ-R7 Features
8 Pins
supply voltage of 15V
117dB voltage gain
ADA4075-2ACPZ-R7 Applications
There are a lot of Analog Devices Inc.
ADA4075-2ACPZ-R7 Instrumentational OP Amps applications.
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
- Division circuits
- Precision measurement
- Power control
- Information processing
- Weak signal detection
- Signal amplification
- Signal filtering
